Supermicro SuperServer 5029P-WTR w/ 8x 3.5" SATA 3 Drive Bays and 2x 10GBase-T LAN Ports

Features:


DB Processing & Storage
Connectivity, Storage Computer Nodes
Data Warehouse
  • 2U Rackmount Server
  • Single Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors
  • Intel® C622 Chipset
  • Up to 768GB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 6x DIMM slots

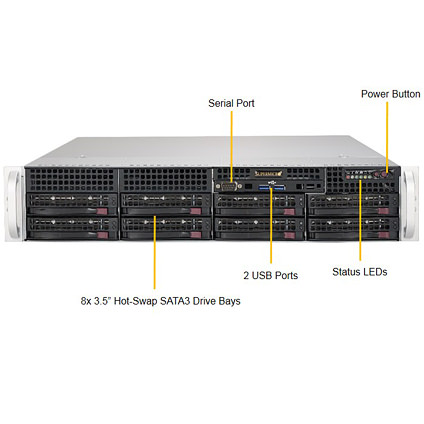

  • 8x 3.5" Hot-swap SATA3 Drive Bays
  • 1x Slim DVD-ROM Drive(Optional)
  • 4x PCI-E 3.0 x8 (FHHL) Slots, 1x PCI-E 3.0 x8 (LP) Slot
  • M.2 mini-PCI-e Support, 2x SuperDOM (Disk on Module) Ports
  • 2x 10GBase-T Ports with Intel X772 + X557

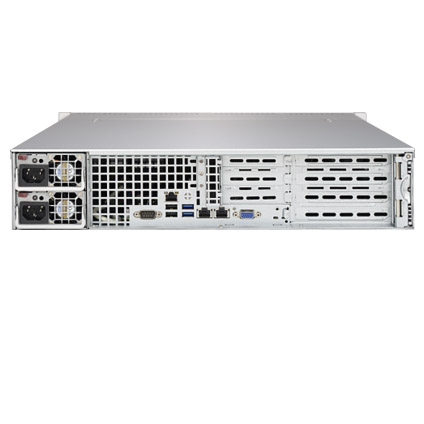

  • 1x VGA, 2x COM, 2x USB 3.0, 2x USB 2.0
  • 3x 80mm Hot-swap PWM Cooling Fans
  • 500W Redundant Power Supply, Platinum Level
  • 25.6" Depth Rack Mount Chassis

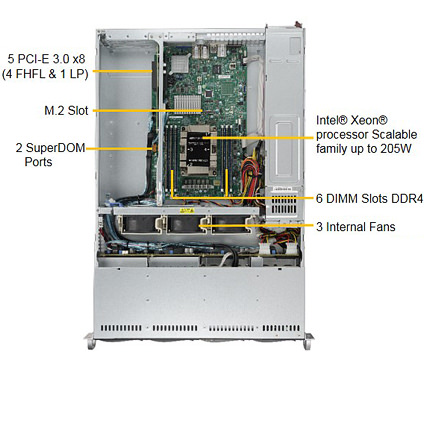

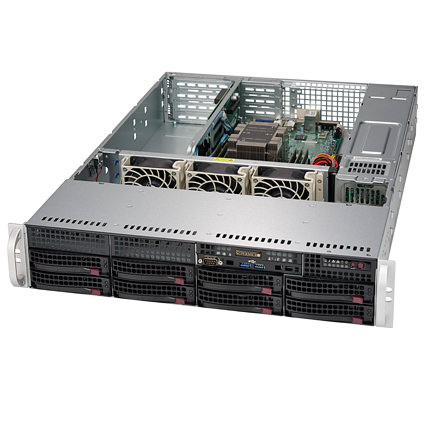

The Supermicro 5029P-WTR 25.6" depth 2U Rackmount server features Intel® Xeon® Scalable Processor & Intel® C622 chipset, supports up to 768GB DDR4 ECC 3DS LRDIMM Memory, built-in two 10GBase-T ports. The Supermicro Server 5029P-WTR comes with eight 3.5" hot-swap drive bays, three 80mm hot-swap PWM cooling fans. Is equipped with 500W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11SPW-TF Motherboard
2U Supermicro Rack Mount Server With X11SPW-TF Motherboard


  • Supermicro X11SPW-TF Motherboard
  • Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C622 Chipset
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T Ethernet Ports, 1x IPMI LAN
  • 500W Redundant Power Supply, Platinum Level Certified

Barebone Only:

 $1,685.00

Configured:

$2,455.00

Customize
