Supermicro SuperStorage Server 5049P-E1CR45H w/ 45x 3.5" SAS3/SATA3 Bays


Backup Storage, Cold Storage
Database Applications
Data Warehousing, Archiving
  • 4U Rackmount Server
  • Single Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors
  • Intel® C621 Chipset
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM Slots
  • 45x Hot-swap 3.5" SAS3/SATA3 Drive Bays with SES3
  • SAS3 (12Gbps) via Broadcom 3108; HW RAID (AOC-S3108L-H8IR-P )
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
    2x Rear Hot-swap 2.5" SATA/NVMe Drive Bays (Optional)
  • 2x PCI-E 3.0 x8 (in x16), 3x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (in x8), 1x PCI-E 3.0 x8 (Occupied by HBA) Slots
  • 2x GbE LAN Ports via Intel i210
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x 80mm High Performance Cooling Fans
  • 1000W Redundant Power Supply, Platinum Level (94%)
  • 26" Depth Rack Mount Chassis

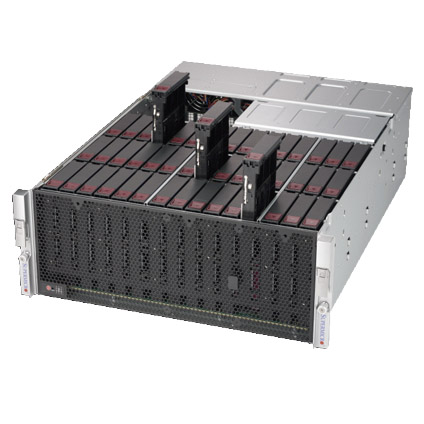

The Supermicro SuperStorage Server 5049P-E1CR45H is a 26" depth 4U Rackmount server that features 45x 3.5" hot-swap SAS3/SATA3 drive bays. Supports Intel® Xeon® Scalable Processor, up to 1.0TB DDR4 ECC 3DS LRDIMM Memory. The 5049P-E1CR45H SuperStorage Server comes with five 80mm high-performance cooling fans, and is equipped with 1000W redundant Platinum level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11SPL-F Motherboard

  • Supermicro X11SPL-F Motherboard
  • Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 45x 3.5" Hot-swap SAS3/SATA3 Drive Bays, Broadcom 3108 SAS3 RAID Controller
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x 2.5" Rear Hot-swap NVMe/SATA Drive Bays (Optional)
  • 20x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2M (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Platinum Level Certified

Barebone Only:
