Supermicro UP SuperServer 510P-M w/ 4x 3.5" SATA Drive Bays

Features:


Small Business
Email/Firewall/Print Server
Web/Hosting Application
  • 1U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  • Intel® C621A Chipset
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card
  • Onboard 2x NVMe/SATA M.2
  • 1x PCI-E 4.0 x16 (FHHL) slot
  • Intel® Ethernet Controller i350 2x 1GbE RJ45
  • 4x 40mm Middle PWM Cooling Fans
  • Single Platinum 500W Power Supply
  • 19.98" Depth Rack Mount Chassis

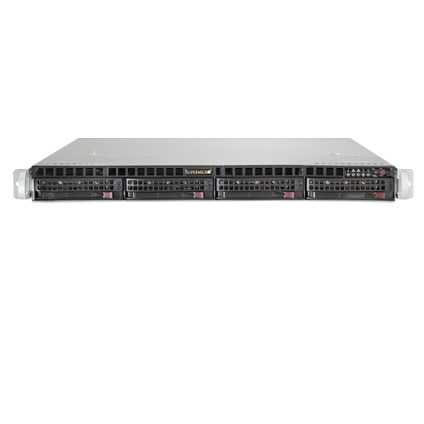

The Supermicro 510P-M 1U 19.98" short depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, supports up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, two M.2 slots and dual port Gigabit Ethernet. The Supermicro SuperServer 510P-M comes with four 3.5" hot-swap SATA3/NVMe drive bays, four 40mm PWM cooling fans, and is equipped 500W platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12SPO-F Motherboard
1U Supermicro Rack Mount Server With X12SPO-F Motherboard


  • Supermicro X12SPO-F Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 8GB DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit LAN, 1x IPMI LAN
  • 500W Power Supply, Platinum Level High-efficiency

Configured:

$2,075.00

Customize
