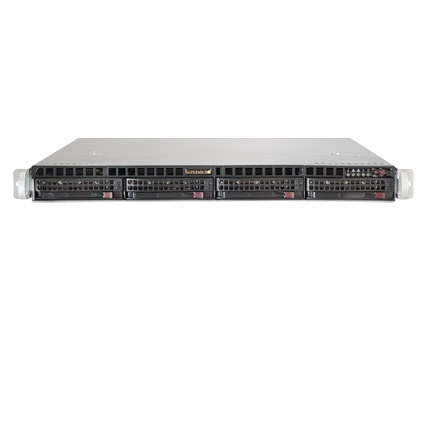

Supermicro UP SuperServer 510P-MR w/ 4x 3.5" SATA Drive Bays


Small Business
Email/Firewall/Print Server
Web/Hosting Application
  • 1U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  • Intel® C621A Chipset
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card
  • Onboard 2x NVMe/SATA M.2
  • 1x PCI-E 4.0 x16 (FHHL) slot
  • Intel® Ethernet Controller i350 2x 1GbE RJ45
  • 4x 40mm Middle PWM Cooling Fans
  • 400W Redundant Platinum Power Supply
  • 19.98" Depth Rack Mount Chassis

The Supermicro 510P-MR 1U 19.98" short depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, supports up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, two M.2 slots and dual port Gigabit Ethernet. The Supermicro SuperServer 510P-MR comes with four 3.5" hot-swap SATA3/NVMe drive bays, four 40mm PWM cooling fans, and is equipped 400W Redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X12SPO-F Motherboard

  • Supermicro X12SPO-F Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit LAN, 1x IPMI LAN
  • 400W Redundant Power Supply, Platinum Level High-efficiency

Barebone Only:
