Supermicro UP SuperServer 510P-WT w/ 4x 3.5" SATA Drive Bays

Features:


Virtualization
Cloud Computing
Enterprise Server
Data Center Optimized
  • 1U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
  • Intel® C621A Chipset
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card
  • Onboard 1x NVMe/SATA M.2
  • 2x PCI-E 4.0 x16 (FHFL) slots, 1x PCI-E 4.0 x16 (LP) slot
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 5x 40mm Counter-rotation PWM Cooling Fans
  • Single Platinum 600W Power Supply
  • 25.6" Depth Rack Mount Chassis

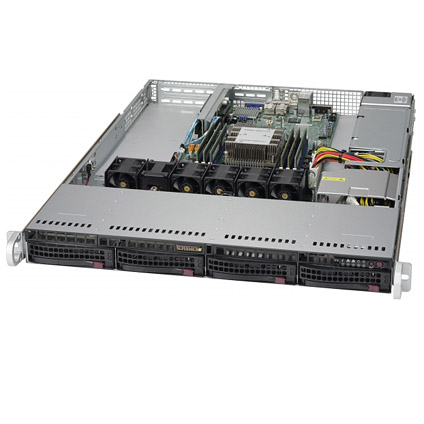

The Supermicro SuperServer 510P-WT 1U 25.6" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GBase-T LAN ports. The Supermicro Server 510P-WT comes with four 3.5" hot-swap SATA3/NVMe drive bays, five 40mm Counter-rotation PWM fans, and is equipped 600W platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X12SPW-TF Motherboard


  • Supermicro X12SPW-TF Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 600W Power Supply, Platinum Level High-efficiency

Barebone Only:

$1,519.00

Configured:

$2,655.00

Customize
