Supermicro UP SuperServer 520P-ACTR12L w/ 12x 3.5" SATA3/SAS3 Drive Bays


Enterprise Server
Database Processing & Storage
Appliance Optimized Storage
  • 2U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  • Intel® C621A Chipset

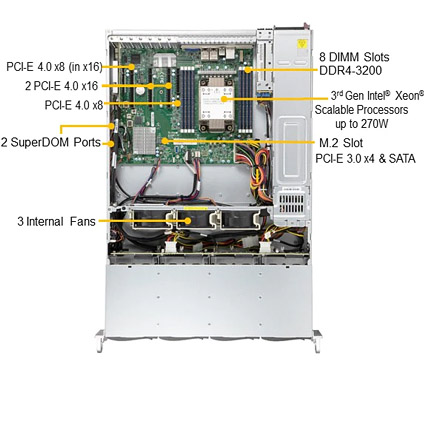

  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

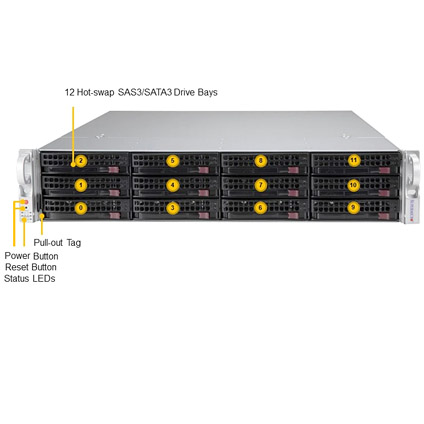

  • 12x Direct-attached Hot-swap 3.5" SAS3/SATA3 drive bays
    Optional 2x 2.5'' Hot-swap NVMe/SATA drives at rear
  • Onboard 1x NVMe/SATA M.2

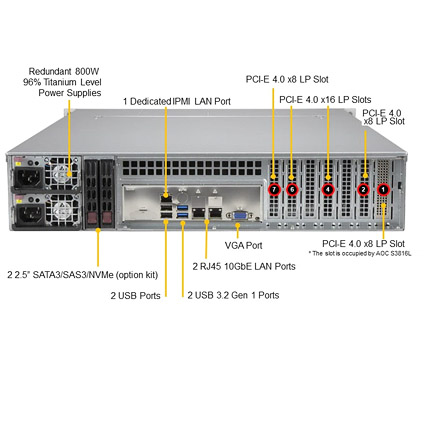

  • 2x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 3x 80mm Heavy Duty PWM Cooling Fans
  • 800W Redundant Titanium Power Supply
  • 25.6" Depth Rack Mount Chassis

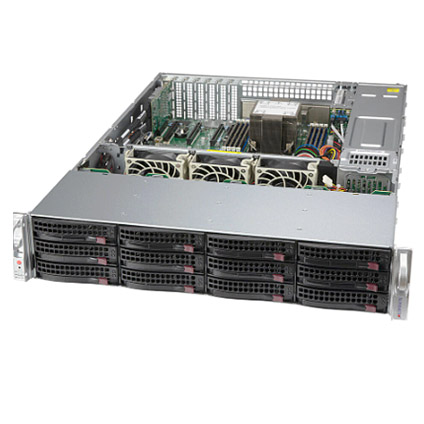

The Supermicro SuperServer 520P-ACTR12L 2U 25.6" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GbE LAN ports onboard. The Supermicro Server 520P-ACTR12L comes with 12x direct-attached 3.5" SAS3/SATA3 hot-swap drive bays, 3x 80mm heavy duty PWM fans, and is equipped with 800W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

Supermicro Server 520P-ACTR12L With X12SPI-TF Motherboard

  • Supermicro X12SPI-TF Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 16GB(2x 8GB) DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA 6.0Gb/s 7200RPM - 3.5" - Seagate Exos 7E8 Series (512n)
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 800W Redundant Power Supply, Titanium Level High-efficiency

Barebone Only:
