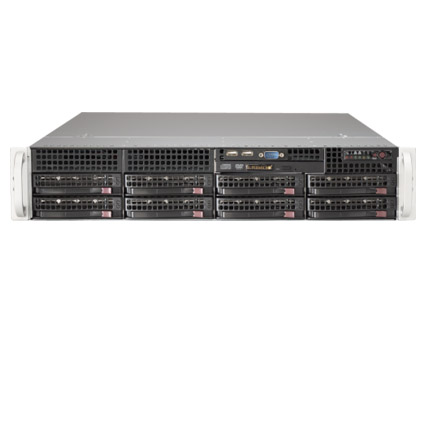

Supermicro UP SuperServer 520P-WTR w/ 8x 3.5" SATA Drive Bays


Data Center Optimized
Database Processing and Storage
Network Appliance
  • 2U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  • Intel® C621A Chipset
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card
    Optional 2x 2.5'' Gen4 NVMe drives at rear
  • Onboard 1x NVMe/SATA M.2
  • 2x PCI-E 4.0 x16 (FHFL) slots, 2x PCI-E 4.0 x8 (LP) slot
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 3x 80mm Heavy Duty PWM Cooling Fans
  • 650W Redundant Platinum Power Supply
  • 25.5" Depth Rack Mount Chassis

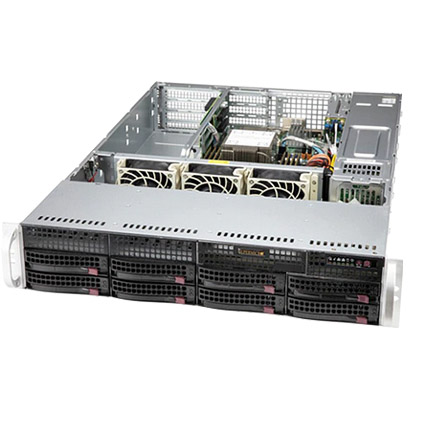

The Supermicro SuperServer 520P-WTR 2U 25.5" depth Rackmount server features 3rd Gen. Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GbE LAN ports onboard. The Supermicro Server 520P-WTR comes with eight 3.5" hot-swap drive bays, three 80mm heavy duty PWM fans, and is equipped 650W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12SPW-TF Motherboard

  • Supermicro X12SPW-TF Motherboard
  • Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 8GB DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 650W Redundant Power Supply, Platinum Level High-efficiency
