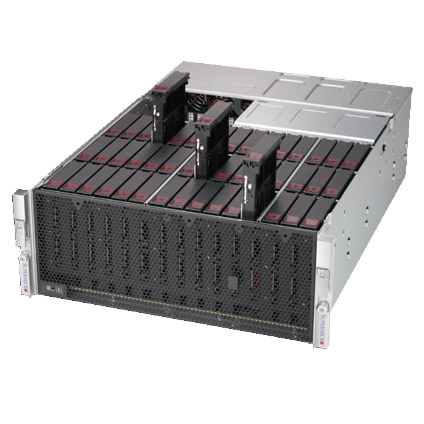

Supermicro UP Storage SuperServer 540P-E1CTR45L w/ 45x 3.5" SATA3/SAS3 Drive Bays


Database Applications
Backup Storage, Cold Storage
Data Warehousing, Archiving
  • 4U Rackmount Server
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  • Intel® C621A Chipset
  • 8x DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
  • 45x Top-loading Hot-swap 3.5" SAS3/SATA3 Drive Bays
    2x Hot-swap 2.5" SATA Drive Bays (Rear)
    2x Hot-swap 2.5" SATA3/NVMe (Rear, Optional)
  • 1x NVMe/SATA M.2 (form factor: 2280, 22110)
  • 2x PCI-E 4.0 x16 (LP) Slots, 2x PCI-E 4.0 x8 (LP) Slots
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • 5x 80mm Heavy Duty Fans with Optimal Fan Speed Control
  • 1600W Redundant Platinum Power Supply
  • 26" Depth Rack Mount Chassis

The Supermicro UP Storage SuperServer 540P-E1CTR45L 4U Rackmount server features Single 3rd Gen. Intel® Xeon® Scalable Processor with up to 3.0TB DDR4 RDIMM/LRDIMM/DCPMM Memory, M.2 NVMe slot and dual 10GbE ports onboard. The Supermicro Server 540P-E1CTR45L comes with 45x 3.5"hot-swap SAS3/SATA3 drive bays, 5x 80mm heavy duty PWM cooling fans, and is equipped with 1600W redundant platinum level power supply.
