Supermicro SuperServer 6019P-WTR w/ 4x 3.5" SATA Drive Bays Redundant Power Supplies


Web Server, Firewall Apps
Corporate-Wins, DNS, Print, Login
Gateway, provisioning servers
Compact Network Appliance
Cloud Computing
  • 1U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset
  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 12x DIMM slots
  • 4x 3.5" Hot-swap SAS3/SATA3 Drive Bays with SES2
  • 2x PCI-E 3.0 x16 (FHHL) Slots
    1x PCI-E 3.0 x8 (LP) Slot
    1x PCI-E 3.0 x16 for Add-on-Module (AOM)
    1x PCI-E M.2 SSD slot
  • 2x Gigabit Ethernet LAN Ports via Intel X722
  • 1x VGA, 4x USB 3.0 (Rear)
  • 4x 40mm Counter-rotating PWM Fans
  • 700W/750W Redundant Power Supplies, Platinum Level High-efficiency
  • 25.6" Depth Rack Mount Chassis

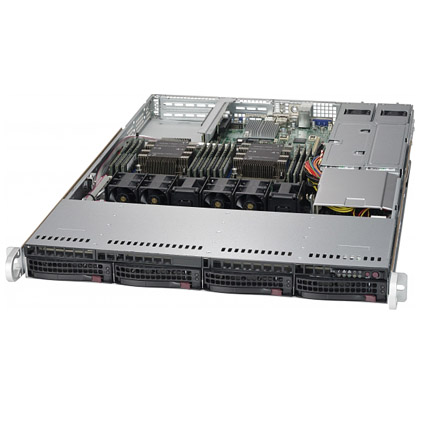

The Supermicro 6019P-WTR 25.6" depth 1U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 1.5TB DDR4 ECC 3DS LRDIMM Memory, built-in two Gigabit Ethernet ports and IPMI LAN port. The Supermicro Server 6019P-WTR comes with four 3.5" hot-swap drive bays, is equipped with four 40mm counter-rotating PWM fans, and 700W/750W redundant platinum Level power supplies.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DDW-L Motherboard

  • Supermicro X11DDW-L Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit Ethernet Ports, 1x IPMI LAN
  • 700W/750W Redundant Platinum Level Power Supplies

Barebone Only:
