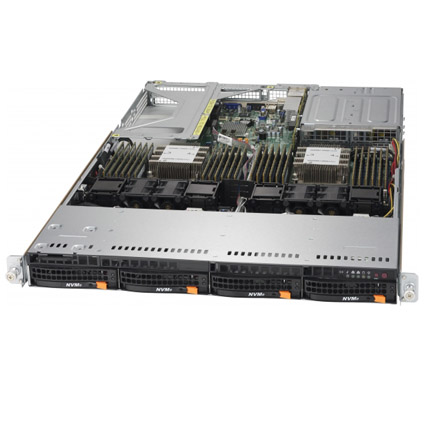

Supermicro Ultra SuperServer 6019U-TN4R4T w/ 4x 3.5" NVMe/SATA3 Hybrid Bays and 4x 10GBase-T LAN


Virtualization, Cloud Computing , High End Enterprise Server
  • 1U Rackmount Server
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Express Chipset

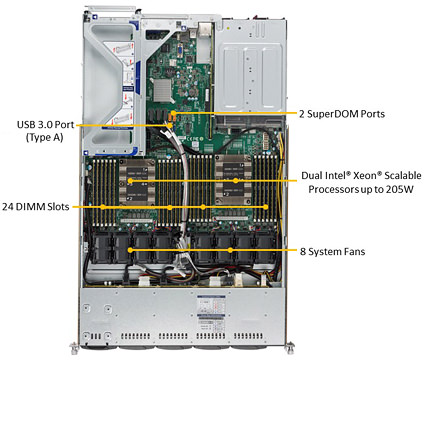

  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24x DIMM slots

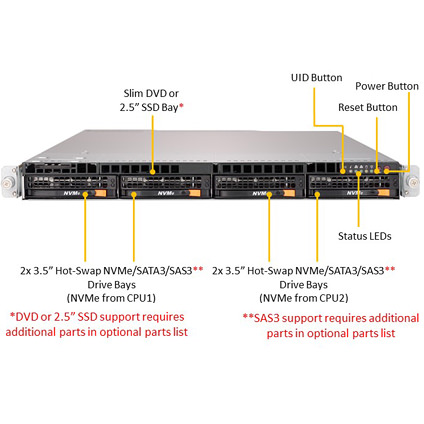

  • 4x 3.5" Hot-swap Drive Bays: 4x NVMe/SATA3 Hybrid Ports
  • 1x M.2 NVMe (2242/2260/2280*/22110*)
    1x M.2 SATA (2242/2260/2280*/22110*) via optional SATA cable
    * Not supported if installing both NVMe & SATA M.2
  • 2x PCI-E 3.0 x16 Full-Height 10.5" Length Slots
    2x PCI-E 3.0 x8 Low-profile Slots (1 Internal)
  • 4x 10GBase-T Ethernet LAN Ports
  • 8x Heavy Duty Fans with Fan Speed Control
  • 750W Redundant Platinum Level (94%+) Power Supplies
  • 29" Depth Rack Mount Chassis

The Supermicro Ultra SuperServer 6019U-TN4R4T is an 29" depth 1U Rackmount server that features dual latest Intel® Xeon® Scalable Processor, up to 3TB DDR4 ECC 3DS LRDIMM, built-in four 10GBase-T Ethernet ports. The 6019U-TN4R4T Supermicro Server comes with four NVMe/SATA3 hybrid drive bays, is equipped with eight heavy duty fans, and 750W redundant platinum level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

1U Supermicro Rack Mount Server With X11DPU Motherboard

  • Supermicro X11DPU Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 4x 3.5" Hot-swap NVMe/SATA3 Hybrid Drive Bays
  • 1x 1.0TB Intel® SSD DC P4510 Series U.2 PCIe 3.1 x4 NVMe Solid State Drive
  • Built-in Video
  • Built-in 4x 10GBase-T Ethernet Ports via AOC-UR-i4XTF Add-on Card;
    Intel® X710 + X557 10GBase-T
  • 750W Redundant 80 Plus Platinum Power Supply

Barebone Only:
