Supermicro SuperServer 6029P-TR w/ 8x 3.5" SATA3 Drive Bays


Cloud and Virtualization Needs
Compute Intensive Application
Database Processing and Storage
High Availability Storage
Hosting & Application Delivery
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots
    Supports Intel Optane Memory NVDIMM

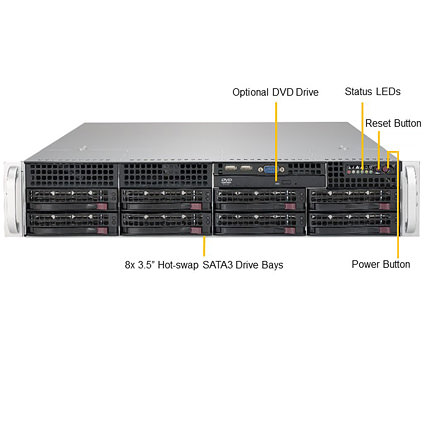

  • 8x 3.5" Hot-swap SATA3 Drive Bays; RAID 0, 1, 5, 10
  • Optional DVD-ROM Drive, Optional Support: 2x Fixed 2.5" NVMe/SSD/HDD, 1x M.2 Support
  • 4x PCI-E 3.0 x16 Low-profile Slots
    2x PCI-E 3.0 x8 Low-profile Slots
  • 2x Gigabit LAN Ports with Intel® X722
  • 3x 80mm Heavy Duty PWM Fans
  • 800W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 25.5" Depth Rack Mount Chassis

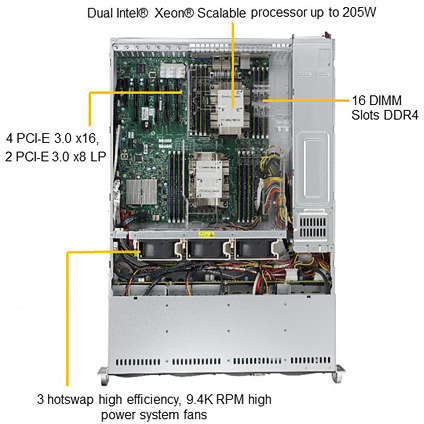

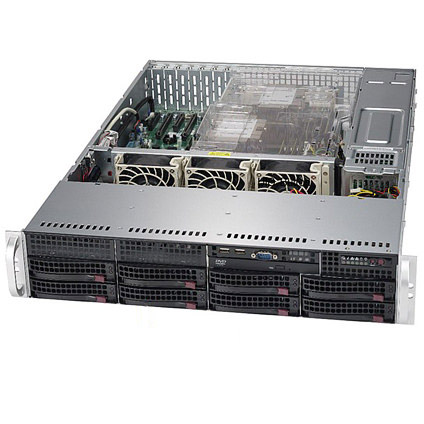

The Supermicro Server 6029P-TR is a 25.5" depth 2U Rackmount server that features dual Intel® Xeon® Scalable Processor & Intel® C621 Chipset, supports up to 2.0TB DDR4 ECC 3DS LRDIMM Memory, built-in two Gigabit LAN ports. The Supermicro SuperServer 6029P-TR comes with eight 3.5" hot-swap drive bays, two fixed 2.5" NVMe/SSD/HDD bay, three 80mm hot-swap PWM fans, and is equipped with 800W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X11DPi-N Motherboard

  • Supermicro X11DPi-N Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C621 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit Ethernet Ports, 1x IPMI LAN
  • 800W Redundant Power Supply, Titanium Level Certified

Barebone Only:
