Supermicro SuperServer 6029P-WTR w/ 8x 3.5" SAS/SATA Drive Bays


Web Server, Firewall Apps.
Corporate-Wins, DNS, Print, Login
Gateway, provisioning servers
Compact Network Appliance
Cloud Computing
  • 2U Rackmount Server
  • Dual Socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 1.5TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 12x DIMM slots

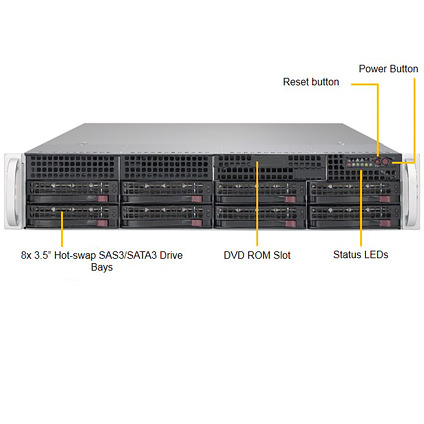

  • 8x 3.5" Hot-swap SAS/SATA Drive Bays with SGPIO, 2x Fixed 3.5" Drive Bays
  • 1x Slim DVD-ROM Drive(Optional)
  • 4x PCI-E 3.0 x8 (FHHL) Slots
    2x PCI-E 3.0 x8 (LP) Slot
    1x PCI-E 3.0 x16 for Add-on-Module
    1x PCI-E M.2 SSD Slot
  • 2x Gigabit LAN Ports via Intel C621
  • 1x VGA, 4x USB 3.0
  • 3x 80mm Heavy Duty PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96% Efficiency)
  • 25.5" Depth Rack Mount Chassis

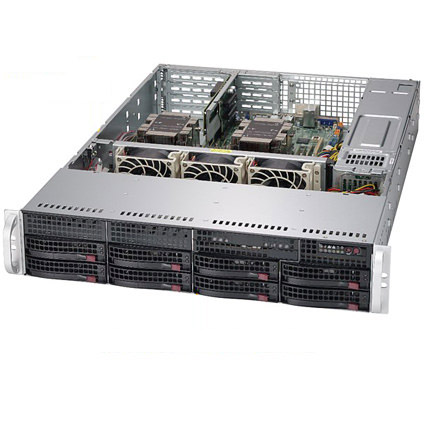

The Supermicro Server 6029P-WTR 2U Rackmount server features dual Intel® Xeon® Scalable Processor & Intel® C621 Chipset, supports up to 1.5TB DDR4 ECC 3DS LRDIMM Memory, two Gigabit LAN & IPMI LAN ports. The Supermicro SuperServer 6029P-WTR comes with eight 3.5" hot-swap drive bays, three 80mm hot-swap PWM cooling fans, and is equipped with 1000W redundant Titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X11DDW-L Motherboard

  • Supermicro X11DDW-L Motherboard
  • 1x Intel® Xeon® Bronze 3206R Processor 8-Core 1.90 GHz 11MB Cache
  • Intel® C621 Chipset
  • 8GB DDR4 ECC Registered Memory
  • 8x 2.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Hard Drive
  • Built-in Video
  • Built-in 2x Gigabit Ethernet Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified
