Supermicro 6029TR-HTR 2U Rackmount Server


Data Center
Enterprise Server
Financial Analysis
Mission-critical applications

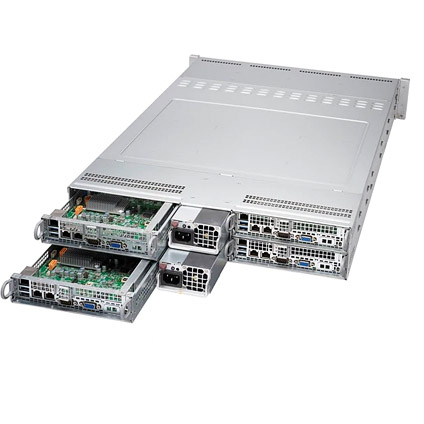

4x Hot-Pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

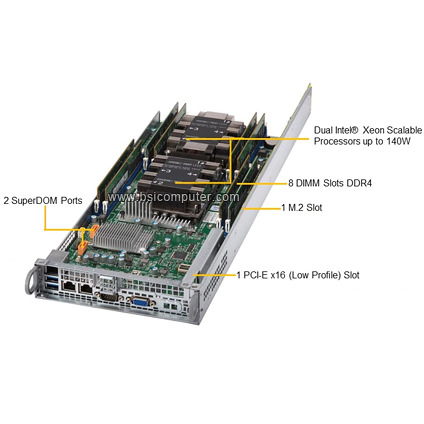

  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 1TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 8x DIMM slots

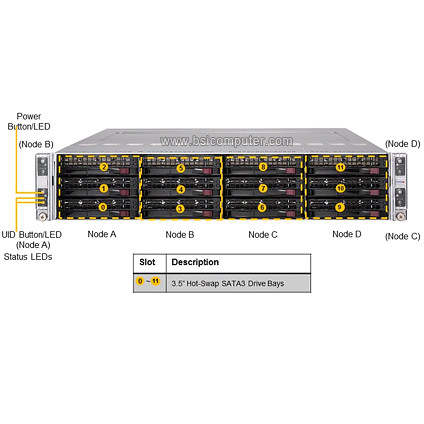

  • 3x 3.5" Hot-swap SATA3 Drive Bays
  • 1x PCI-E 3.0 x16 LP Slots
  • Dedicated IPMI 2.0 LAN
  • 2x SATA DOM + 1x SATA/NVMe M.2 (22110/2280)
  • 4x 80mm Heavy Duty Fans with Optimal Fan Speed Controlled

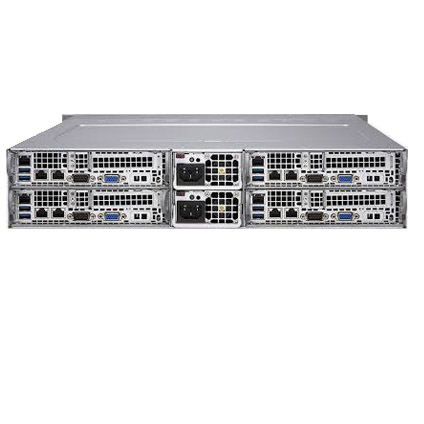

  • 1600W Redundant Power Supplies; Titanium Level (96%)
  • 28.5" Depth Rackmount Chassis

The Supermicro SuperServer 6029TR-HTR is a 28.5" depth 2U 4x nodes high performance rackmount server. Each nodes supports dual socket Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM memory. The Supermicro Server 6029TR-HTR comes with 12x hot-swap 3.5" SATA3 drive bays, four 80mm heavy duty fans, and is equipped with 1600W redundant titanium level power supply.
