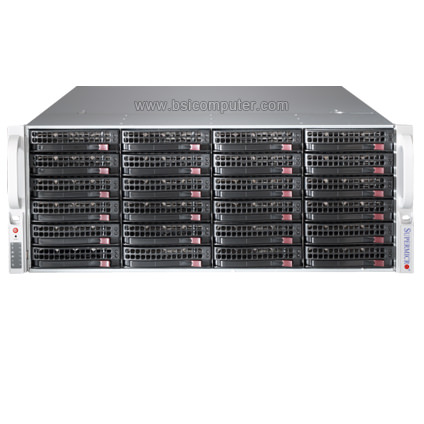

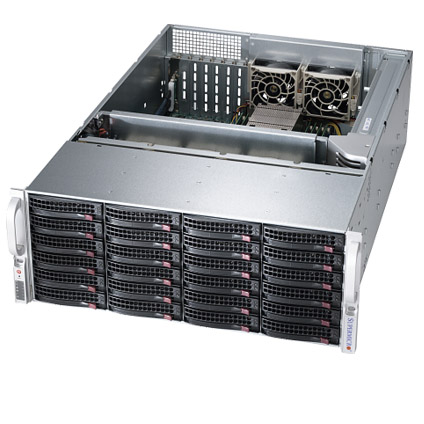

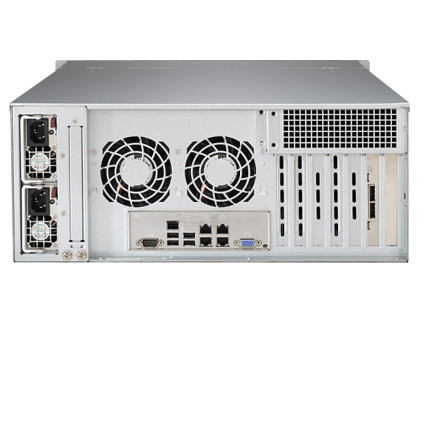

Supermicro SuperStorage Server 6049P-E1CR24H w/ 24x 3.5" SAS3/SATA3 Bays 2x M.2 Slots


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
  • 4U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C624 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots
  • 24x Hot-swap 3.5" SAS3/SATA3 Direct Attached Drive Bays
  • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0, 1, 5, 6, 10, 50, 60
  • 3x PCI-E 3.0 x16, 4x PCI-E 3.0 x8 Slots (Slot 2 & 3 Occupied by Controller and JBOD Expansion Port)
  • 2x NVMe M.2 Slots
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557

  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 8cm PWM Cooling Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 26.5" Depth Rack Mount Chassis

The Supermicro Server 6049P-E1CR24H is a 26.5" depth 4U Rackmount server that features dual Intel® Xeon® Scalable Processor, supports up to 2.0TB DDR4 LRDIMM Memory, built-in dual 10GBase-T LAN ports. The Supermicro SuperStorage Server 6049P-E1CR24H comes with twenty four 3.5" hot-swap SAS3/SATA3 drive bays, five 80mm PWM fans, and is equipped with 1000W redundant Titanium level power supply.
