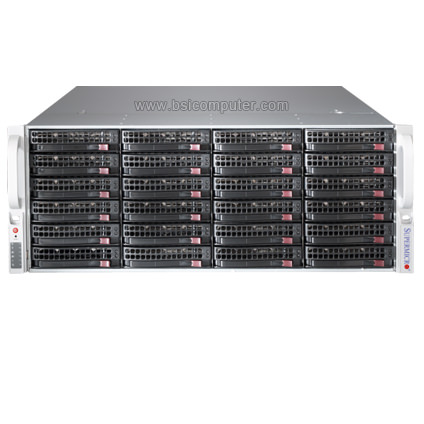

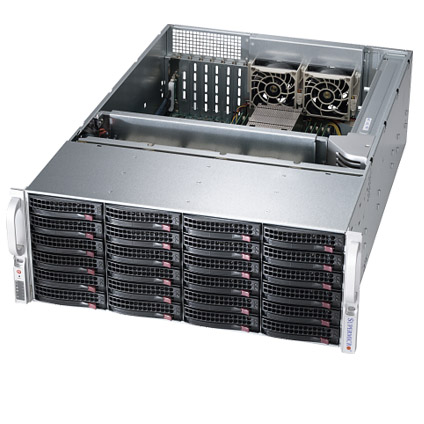

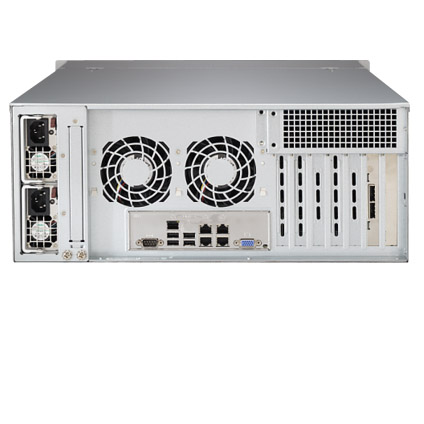

Supermicro SuperStorage Server 6049P-E1CR24L w/ 24x 3.5" SAS3/SATA3 Bays 2x M.2 Slots


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
  • 4U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C624 Chipset
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots
  • 24x Hot-swap 3.5" SAS3/SATA3 Direct Attached Drive Bays w/ 3008 SAS3 AOC
  • 3x PCI-E 3.0 x16, 4x PCI-E 3.0 x8 Slots (Slot 2 & 3 Occupied by Controller and JBOD Expansion Port)
  • 2x NVMe M.2 Slots
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557

  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 8cm PWM Cooling Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 26.5" Depth Rack Mount Chassis

The Supermicro Server 6049P-E1CR24L 4U Rackmount server features dual Intel® Xeon® Scalable Processor, supports up to 2.0TB DDR4 LRDIMM Memory, built-in dual 10GBase-T LAN ports. The Supermicro SuperStorage Server 6049P-E1CR24L comes with twenty four 3.5" hot-swap SAS3/SATA3 drive bays, five 80mm PWM cooling fans, and is equipped with 1000W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11DPH-T Motherboard

  • Supermicro X11DPH-T Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • Intel® C624 Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 24x 3.5" Hot-swap SAS3/SATA3 Drive Bays
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN Ports, 1x IPMI LAN
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:
