Supermicro SuperStorage Server 6049P-E1CR45L w/ 45x 3.5" SAS3/SATA3 Bays

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
  • 4U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM Slots
  • 45x Hot-swap 3.5" SAS3/SATA3 Drive Bays with SES3, Optional 6x NVMe bays; SAS3 (12Gbps) via Broadcom 3008; IT Mode
    2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Slots
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 80mm Rear Exhaust PWM Fans
  • 1000W Redundant Power Supply, Platinum Level (94%)
  • 26" Depth Rack Mount Chassis

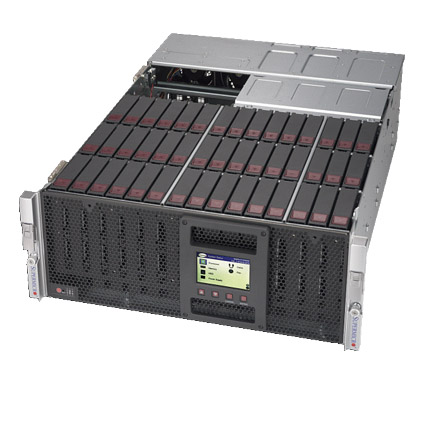

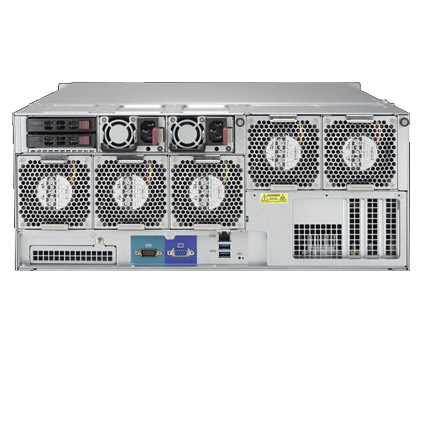

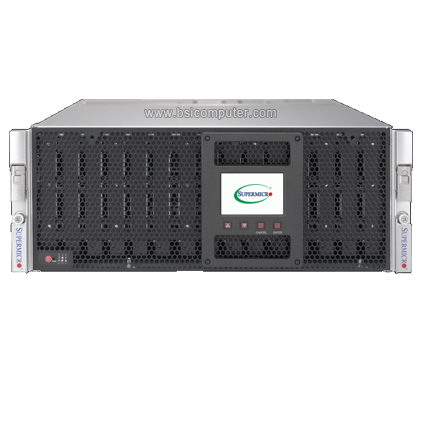

The Supermicro SuperStorage Server 6049P-E1CR45L is a 26" depth 4U Rackmount server that features 45x 3.5" hot-swap SAS3/SATA3 drive bays & Broadcom 3008 RAID controller, supports optional 6x NVMe drive bays. Dual Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory. The 6049P-E1CR45L SuperStorage Server comes with five 80mm hot-swap redundant PWM fans, and is equipped with 1000W redundant Platinum level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11DSC+ Motherboard
4U Supermicro Rack Mount Server With X11DSC+ Motherboard


  • Supermicro X11DSC+ Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 45x 3.5" Hot-swap SAS3/SATA3 Drive Bays, Broadcom 3008 SAS3 Controller
  • 2x Rear Hot-swap 2.5" Drive Bays
  • 20x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2 (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Platinum Level Certified

Barebone Only:

 $4,905.00

Configured:

$9,149.00

Customize
