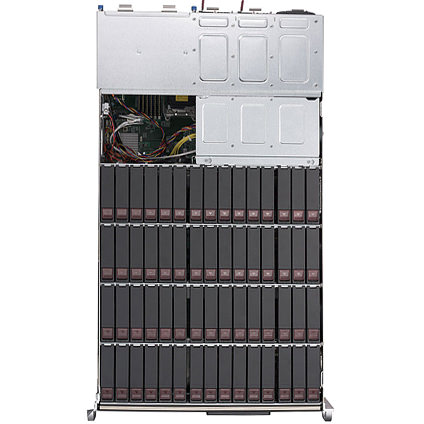

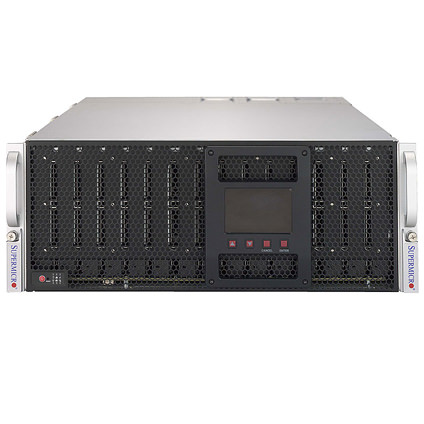

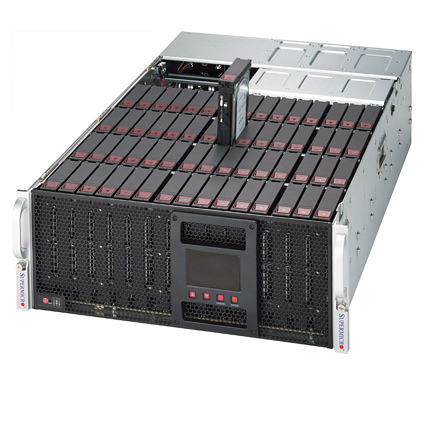

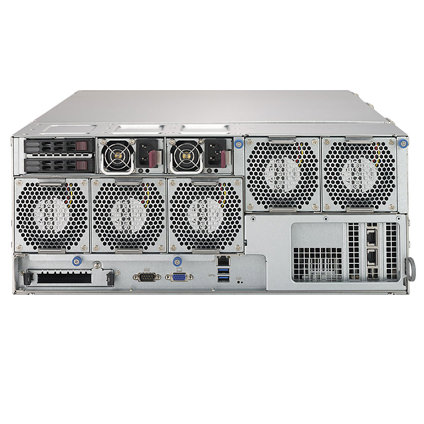

Supermicro SuperStorage Server 6049P-E1CR60L w/ 60x 3.5" SAS3/SATA3 Bays

Features:


Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
  • 4U Rackmount Server
  • Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Intel® C621 Chipset
  • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24DIMM Slots
  • 60x Hot-swap 3.5" SAS3/SATA3 Drive Bays with SES3
  • Broadcom 3008 SAS3 Controller, IT Mode
  • 2x Rear Hot-swap 2.5" SATA Drive Bays
  • 2x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 Slots
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 80mm Rear Exhaust PWM Fans
  • 1000W Redundant Power Supply, Titanium Level (96%)
  • 30.2" Depth Rack Mount Chassis

The Supermicro SuperStorage Server 6049P-E1CR60L is a 30.2" depth 4U Rackmount server that features 60x 3.5" Hot-swap SAS3/SATA3 drive bays and Broadcom 3008 SAS3 controller for high-capacity storage. Supports dual Intel® Xeon® Scalable Processor, up to 3.0TB DDR4 ECC 3DS LRDIMM Memory. The 6049P-E1CR60L SuperStorage Server comes with five 80mm hot-swap redundant PWM cooling fans, and is equipped with 1000W redundant titanium level power supply.

Due to the complexity of integration, this product is sold as completely assembled systems only. Please contact our Supermicro sales rep for special requirements.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X11DSC+ Motherboard


  • Supermicro X11DSC+ Motherboard
  • 2x Six-core Intel® Xeon® Bronze 3204 Processor (8.25M Cache, 1.90 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 60x 3.5" Hot-swap SAS3/SATA3 Drive Bays
  • 2x Rear Hot-swap 2.5" Drive Bays
  • 30x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 1 x Supermicro SIOM 1-Gigabit Ethernet Adapter AOC-MGP-i2 (2x RJ45)
  • Built-in Video
  • 1000W Redundant Power Supply, Titanium Level Certified

Barebone Only:

$6,429.00

Configured:

$12,029.00

Customize
