Supermicro CloudDC SuperServer 610C-TR


Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes

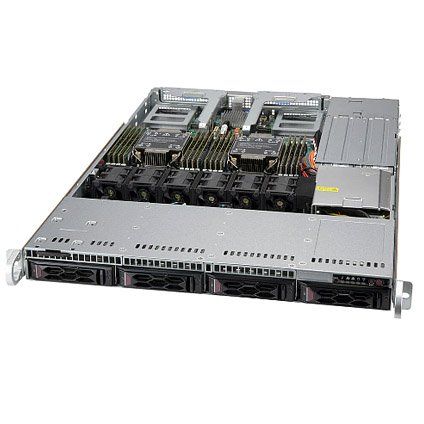

  • 1U Rackmount Server

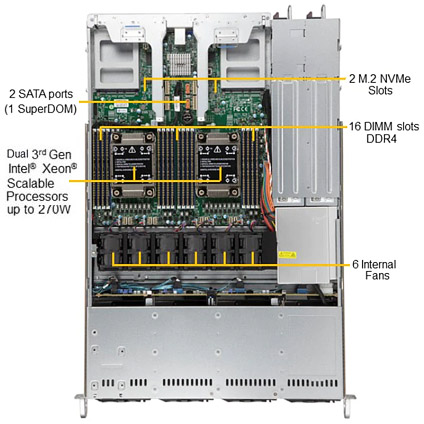

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

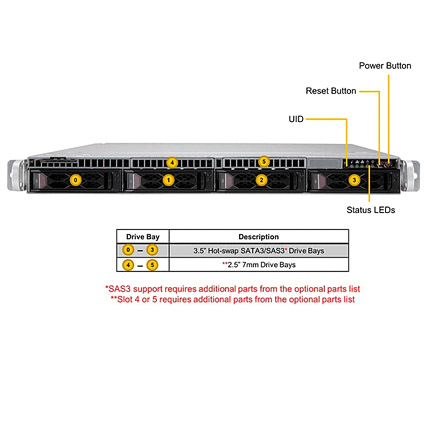

  • 4x Hot-swap 3.5''/2.5'' SATA/SAS Drive Bays

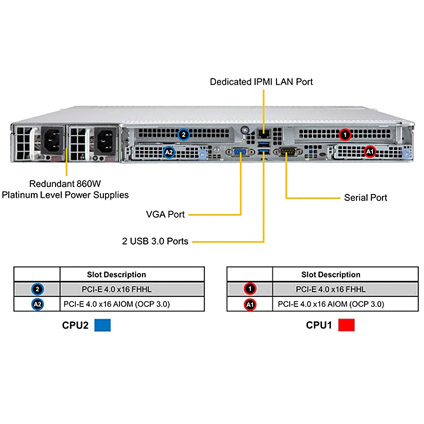

  • 2x PCI-E 4.0 x16 FHHL; 2x PCI-E 4.0 x16 AIOM (OCP 3.0); 2x PCI-E 3.0 x2 NVMe M.2
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 6x Counter-rotating 4 cm PWM fans with optimal fan speed control, 2x air shrouds
  • 860W Redundant Platinum Power Supply
  • 25.6" Depth Rack Mount Chassis

The Supermicro SuperServer 610C-TR 1U 25.6" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 6.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots. The Supermicro Server 610C-TR comes with 4x 3.5" or 2.5" hot-swap SATA/SAS drive bays, six 40mm counter-rotation fans, and is equipped 860W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

1U Supermicro Rack Mount Server With X12DDW-A6 Motherboard

  • Supermicro X12DDW-A6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 4x 2.5" 3.5"/2.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • 860W Redundant Power Supply, Platinum Level High-efficiency
