Supermicro Storage SuperServer 610P-ACR12N4L


Database Applications
Hyperscale Data Center
Object Storage
Big Data Analytics
Scale-Out Density
Hadoop & Ceph storage solutions
cale-out NAS
  • 1U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 120-205W
  • Intel® C621A Chipset
  • Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
  • 12x Hot-swap 3.5" SAS/SATA Drive Bays
    4x Hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA Drive Bays
    4x E1.S (EDSFF Short) NVMe Drives
  • Host Bus Adapter via Broadcom® 3224
  • PCI-E 4.0 x16 AIOM Support + 3 PCI-E 4.0 LP Slots
  • 2x 25G SFP+ Ports Onboard
  • 6x 40mm Heavy Duty Fans
  • 800W Redundant Platinum Power Supply
  • 37” Depth Rack Mount Chassis

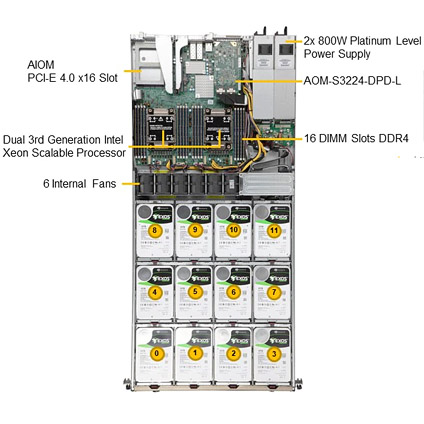

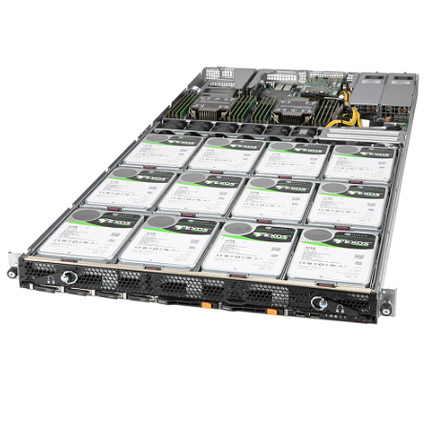

The Supermicro Storage SuperServer 610P-ACR12N4L 1U 37” depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM memory, two M.2 slots and two 25G SFP+ port onboard. The Supermicro Server 610P-ACR12N4L comes with 12x 3.5" hot-swap SATA3/SAS3 drive bays, 4x E1.S NVMe drives, 2x 2.5" NVMe/SATA hot-swap drive bays, 6x 40mm heavy duty fans, and is equipped with 800W redundant platinum level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

Supermicro Server 610P-ACR12N4L With X12DPD-A6M25 Motherboard

  • Supermicro X12DPD-A6M25 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap SAS3/SATA3 Drive Bays
    4x hot-swap EDSFF Short Bays
    , 2x 2.5" Hot-swap NVMe/SATA Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 25G SFP+ Ports, 1x IPMI LAN
  • 800W Redundant Power Supply, Platinum Level High-efficiency
