Supermicro BigTwin SuperServer 620BT-DNTR


Hyperconverged Infrastructure
Scale-Out Object Storage
Back-up & Recovery

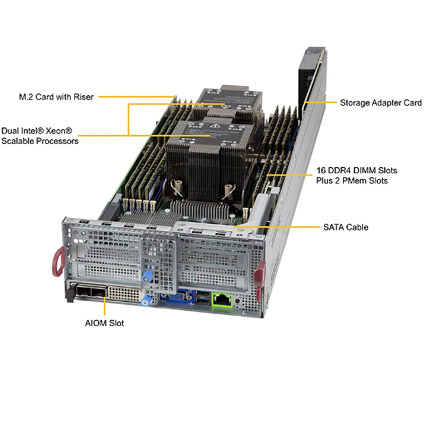

Two Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:
  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
    Support CPU TDP 270W
  • Intel® C621A Chipset
  • 20x DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

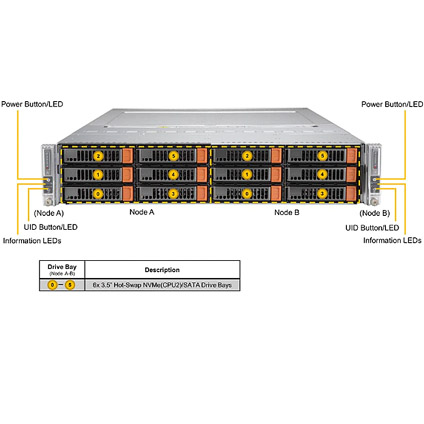

  • 6x 3.5" Hot-swap NVMe/SATA Drive Bays (6x 2.5" NVMe Hybrid; 6x 3.5" NVMe Hybrid)
  • 1x PCI-E 4.0 x16 (LP) Slot, 2x PCI-E 4.0 x8 (LP) Slots;
    Tool-less support
    Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA Support Onboard
    Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network Connectivity via AIOM (OCP 3.0 Compliant)
  • 2x 80mm 14.9K RPM Cooling Fans Per Node, Liquid Cooling Support

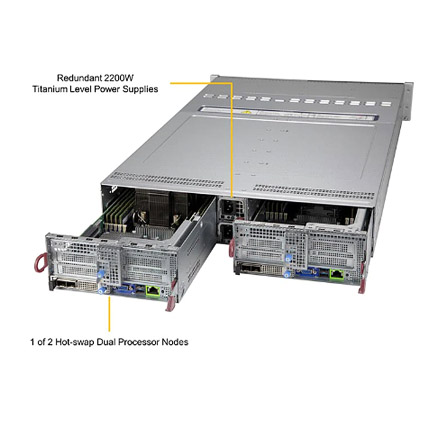

  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  • 30.5" Depth Rack Mount Chassis

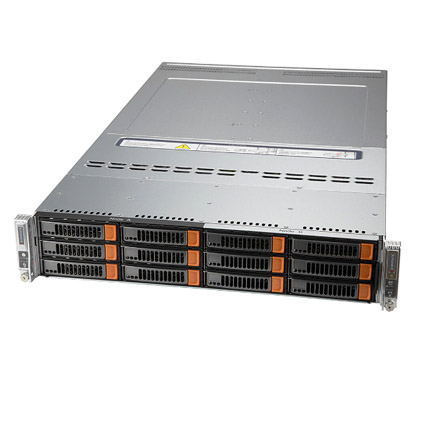

The Supermicro BigTwin SuperServer 620BT-DNTR is a 30.5" depth 2U 2-nodes high performance rackmount server. Each nodes supports dual 3rd Gen. Intel Xeon Scalable Processor, 20 DIMM slots supports up to 6.0TB memory. The 620BT-DNTR 2U Racknount Server comes with 12x hot-swap 3.5" NVME/SATA drive bays, four 80mm 14.9K RPM heavy duty fans, and is equipped with 2200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DPT-B6 Motherboard

  • 2x Supermicro X12DPT-B6 Motherboard
  • 4x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 64GB(8x 8GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap NVME/SATA Drive Bays
  • 2x 2.0TB SATA 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • 2200W Redundant Power Supply, Titanium Level Certified
