Supermicro CloudDC SuperServer 620C-TN12R


Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

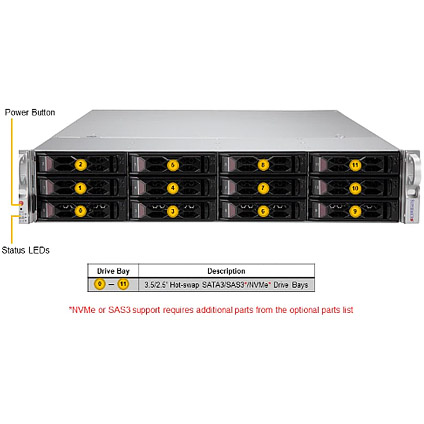

  • 12x 3.5/2.5” Hot-swap NVMe/SATA/SAS Drive Bays
  • 4x PCI-E 4.0 x16 FHHL (OR) 2x PCI-E 4.0 x16 FHHL and 4x PCI-E 4.0 x8 FHHL;
    2x PCI-E 4.0 x16 AIOM (OCP 3.0); 2x PCI-E 3.0 x2 NVMe M.2
  • Dual AIOM with NCSI (OCP 3.0) for Networking, 1x Dedicated IPMI LAN

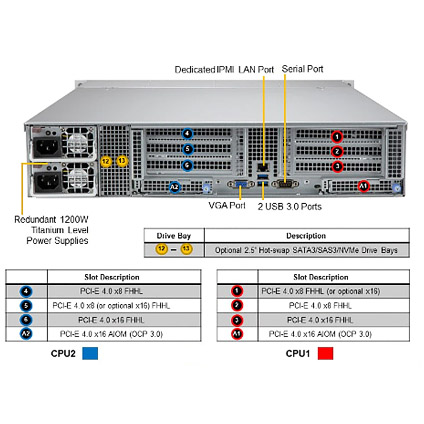

  • 1x VGA, 1x COM, 2x USB 3.0 (Rear)
  • 3x Heavy Duty Fans with Optimal Fan Speed Control, 1x Air Shrouds
  • 1200W Redundant Titanium Power Supply
  • 25.5" Depth Rack Mount Chassis

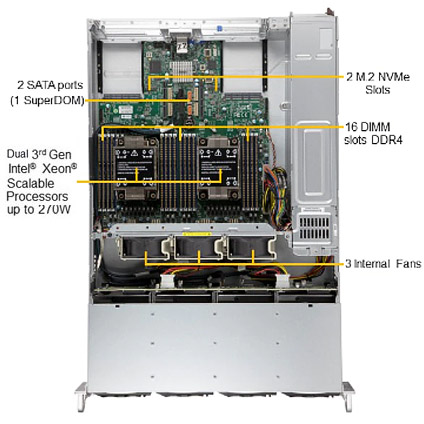

The Supermicro SuperServer 620C-TN12R 2U 25.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 6.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots. The Supermicro Server 620C-TN12R comes with 12x 3.5/2.5” hot-swap NVMe/SATA/SAS drive bays, 3x heavy duty fans, and is equipped 1200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

2U Supermicro Rack Mount Server With X12DDW-A6 Motherboard

  • Supermicro X12DDW-A6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap NVMe/SATA/SAS Drive Bays
  • 1x 1.0TB SATA 6.0Gb/s 3.5" Hard Drive
  • Built-in Video
  • 1200W Redundant Titanium Power Supply
