Supermicro Storage SuperServer 620P-ACR12H w/ 12x 3.5" SATA3/SAS3/NVMe Drive Bays


Enterprise Server
HPC, Data Center
Database Processing & Storage
Corporate Database
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  • 12x Hot-swap 3.5" SAS3/SATA3 drive bays (4 NVMe Hybrid Ports)
  • Broadcom® 3916 Controller
  • 2x 2.5'' Hot-swap drive bays at rear
  • Onboard 1x NVMe/SATA M.2
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN
  • 3x 80mm Heavy duty fans with optimal fan speed control; 1x Air Shroud
  • 1200W Redundant Titanium Power Supply
  • 25.5" Depth Rack Mount Chassis

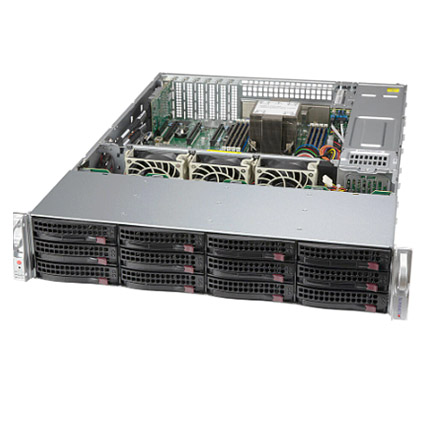

The Supermicro Storage SuperServer 620P-ACR12H 2U 25.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, M.2 slot and dual 10GbE ports onboard. The Supermicro Server 620P-ACR12H supports 12x 3.5" hot-swap SAS3/SATA3 drive bays (4x NVMe hybrid ports) with Broadcom® 3916 Controller, and 2x rear 2.5'' hot-swap drive bays. The Supermicro 620P-ACR12H comes with 3x 80mm heavy duty fans, and is equipped with 1200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard

  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 12x 3.5" Hot-swap Drive Bays
  • Broadcom® 3916 Controller
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1200W Redundant Power Supply, Titanium Level High-efficiency

Barebone Only:
