Supermicro Storage SuperServer 620P-ACR12L w/ 12x 3.5" SATA3/SAS3/NVMe Drive Bays


Enterprise Server
HPC, Data Center
Database Processing & Storage
Corporate Database
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots

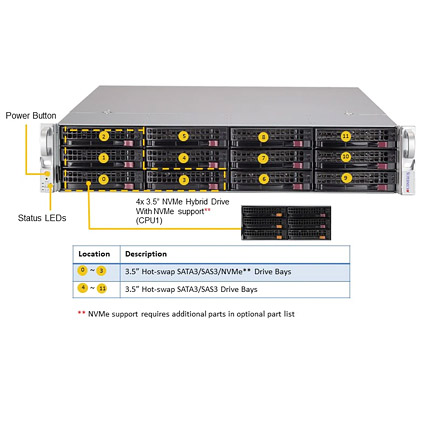

  • 12x Hot-swap 3.5" SAS3/SATA3 drive bays (4 NVMe Hybrid Ports)
    2x 2.5'' Hot-swap drive bays at rear
  • Broadcom® 3816 Controller
  • Onboard 1x NVMe/SATA M.2

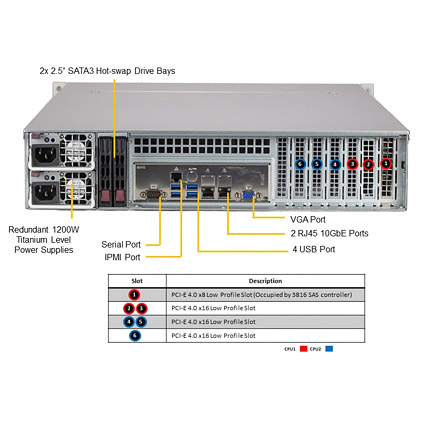

  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN
  • 3x 80mm Heavy duty fans with optimal fan speed control; 1x Air Shroud
  • 1200W Redundant Titanium Power Supply
  • 25.5" Depth Rack Mount Chassis

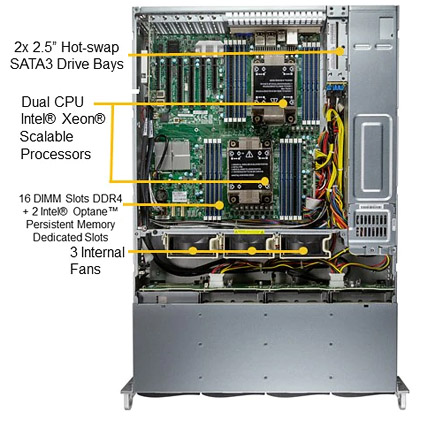

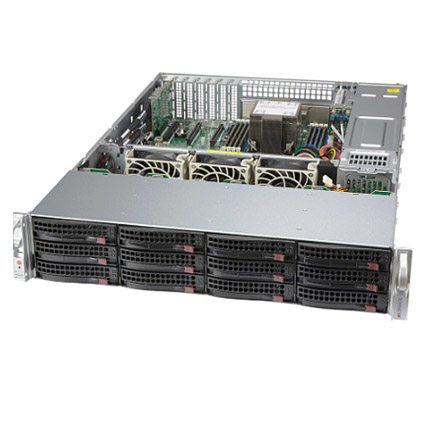

The Supermicro Storage SuperServer 620P-ACR12L 2U 25.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, M.2 slot and dual 10GbE ports onboard. The Supermicro Server 620P-ACR12L supports 12x 3.5" hot-swap SAS3/SATA3 drive bays (4x NVMe hybrid ports), and 2x rear 2.5'' hot-swap drive bays. The Supermicro 620P-ACR12L comes with 3x 80mm heavy duty fans, and is equipped with 1200W redundant titanium level power supply.
