Supermicro Storage SuperServer 620P-ACR16H w/ 16x 3.5" SATA3/SAS3/NVMe Drive Bays

Features:


Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots, Up to 4TB
  • 16x Hot-swap 3.5" SATA3/ SAS3 drive bays (4 NVMe Hybrid Ports)
  • Broadcom® 3916 Controller
  • 2x Rear Hot-swap 2.5'' drive bays
  • Onboard 1x NVMe/SATA M.2
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN
  • 4x 80mm Heavy duty fans with optimal fan speed control; 1x Air Shroud
  • 1600W Redundant Titanium Power Supply
  • 27.75" Depth Rack Mount Chassis

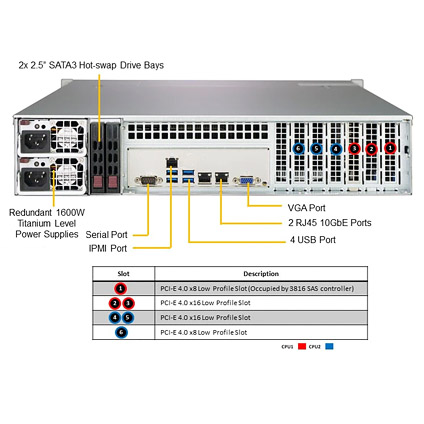

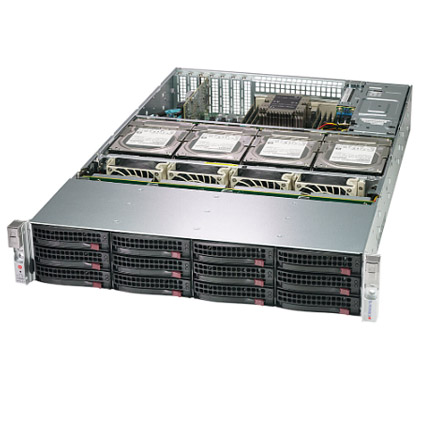

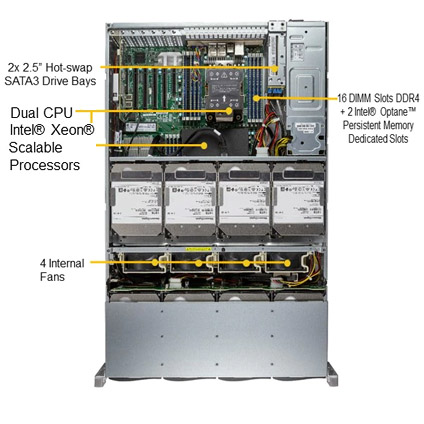

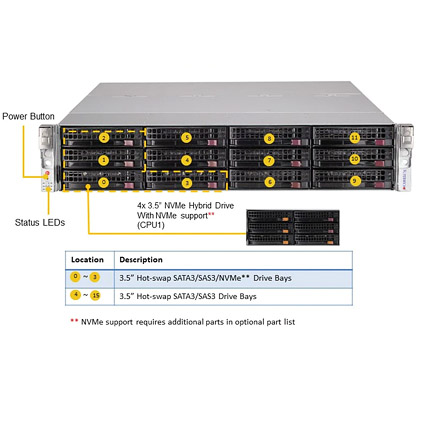

The Supermicro Storage SuperServer 620P-ACR16H 2U 27.75" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, M.2 slot and dual 10GbE ports onboard. The Supermicro Server 620P-ACR16H supports 16x 3.5" hot-swap SAS3/SATA3 drive bays (4x NVMe hybrid ports) with Broadcom® 3916 Controller, and 2x rear 2.5'' hot-swap drive bays. The Supermicro 620P-ACR16H comes with 4x 80mm heavy duty fans, and is equipped with 1600W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard


  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 16x 3.5" Hot-swap Drive Bays
  • Broadcom® 3916 Controller
  • 1x 1.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1600W Redundant Power Supply, Titanium Level High-efficiency

Barebone Only:

$3,935.00

Configured:

$5,959.00

Customize
