Supermicro Storage SuperServer 620P-ACR16L w/ 16x 3.5" SATA3/SAS3/NVMe Drive Bays


Enterprise Server
HPC, Data Center
Database Processing & Storage
Corporate Database
  • 2U Rackmount Server

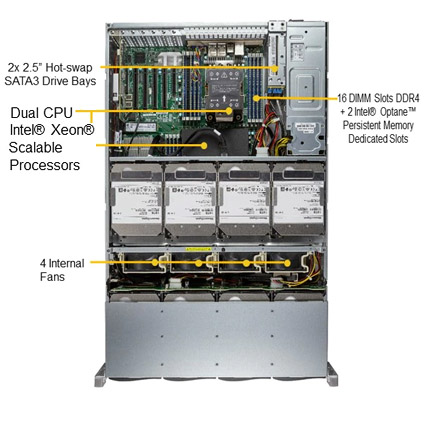

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots, Up to 4TB

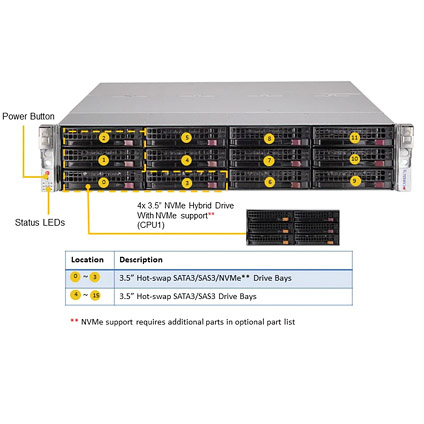

  • 16x Hot-swap 3.5" SATA3/ SAS3 drive bays (4 NVMe Hybrid Ports)
    2x Rear Hot-swap 2.5'' drive bays
  • Broadcom® 3816 Controller
  • Onboard 1x NVMe/SATA M.2

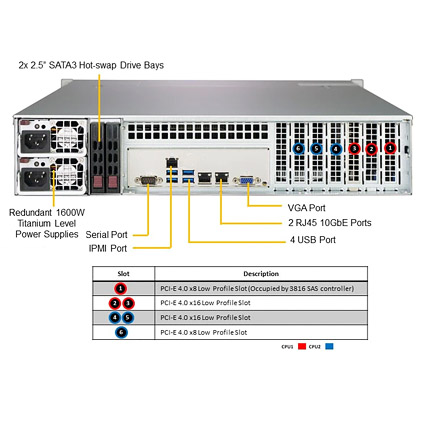

  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN
  • 4x 80mm Heavy duty fans with optimal fan speed control; 1x Air Shroud
  • 1600W Redundant Titanium Power Supply
  • 27.75" Depth Rack Mount Chassis

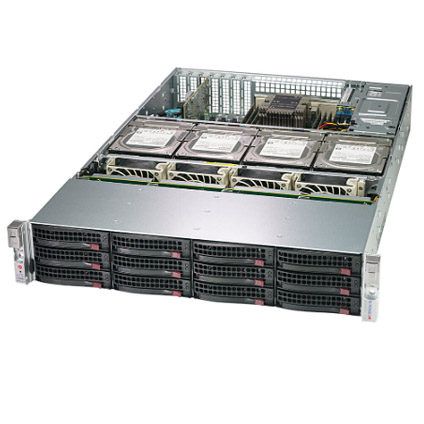

The Supermicro Storage SuperServer 620P-ACR16L 2U 27.75" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, M.2 slot and dual 10GbE ports onboard. The Supermicro Server 620P-ACR16L supports 16x 3.5" hot-swap SAS3/SATA3 drive bays (4x NVMe hybrid ports), and 2x rear 2.5'' hot-swap drive bays. The Supermicro 620P-ACR16L comes with 4x 80mm heavy duty fans, and is equipped with 1600W redundant titanium level power supply.
