Supermicro Mainstream SuperServer 620P-TR w/ 8x 3.5" SATA Drive Bays


Enterprise Server
Data Center Optimized
Application and data serving
Model analysis
Compute Intensive Applications
  • 2U Rackmount Server

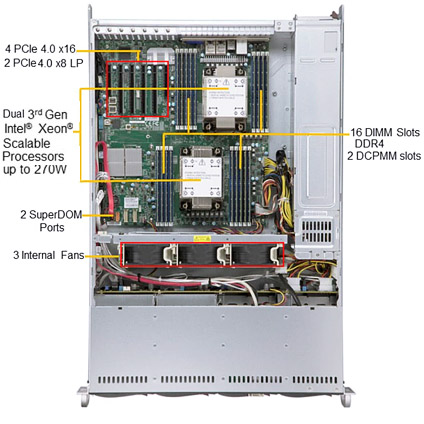

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP. 3 UPI up to 11.2 GT/s
  • Intel® C621A Chipset
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz - Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)

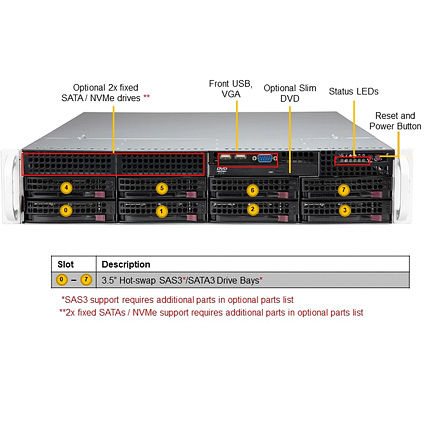

  • 8x Hotswap 3.5" SATA3 (6 Gbps) drive bays with Intel® C621A controller for RAID 0,1,5,10
  • Slim DVD-ROM Drive (Optional)
  • 2x fixed 2.5" NVMe/SSD/HDD/SuperDOM Drive (Optional)
  • 1x PCI-E 3.0 x4 M.2, M.2 Form Factor: 2260, 2280, 22110
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots

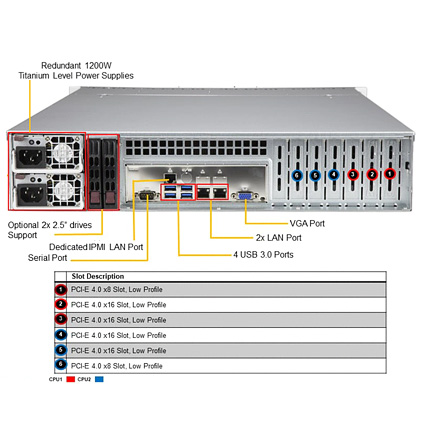

  • 1x Rear VGA, 1x Type A Port, 2x COM Ports and 6x USB Ports
  • Dual Gigabit LAN with Intel® i350 Ethernet Controller
  • 3x heavy duty Hot-swappable 13.5K RPM Middle Fans with optimal fan speed control
  • 1200W Redundant Titanium Power Supply
  • 25.5" Depth Rack Mount Chassis

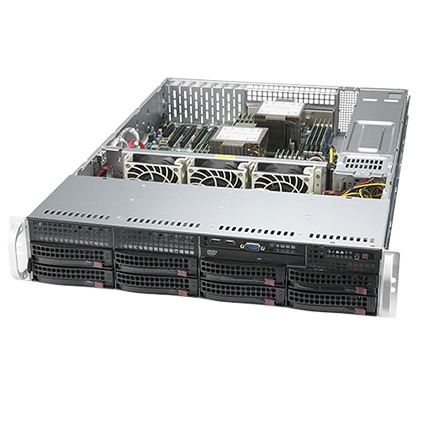

The Supermicro SuperServer 620P-TR 2U 25.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual GbE LAN ports onboard. The Supermicro Server 620P-TR comes with eight 3.5" hot-swap SATA3 drive bays, three heavy duty hot-swappable 13.5K RPM middle fans, and is equipped 1200W redundant titanium level power supply.
