Supermicro Mainstream SuperServer 620P-TRT w/ 8x 3.5" SATA Drive Bays

Features:


Virtualization
Enterprise Server
Data Center Optimized
Application and data serving
Model analysis
Compute Intensive Applications

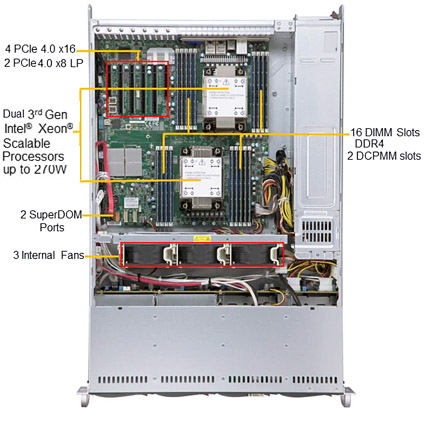

  • 2U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP. 3 UPI up to 11.2 GT/s
  • Intel® C621A Chipset
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz - Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)

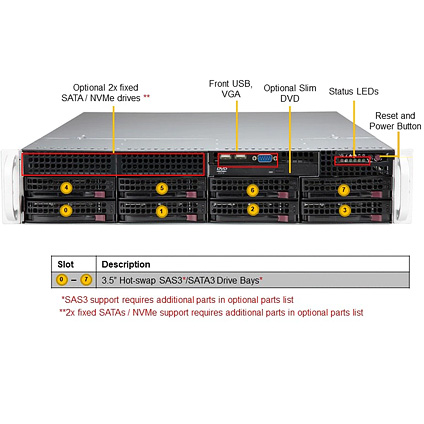

  • 8x hotswap 3.5" SATA3 (6 Gbps) drive bays with Intel® C621A controller for RAID 0,1,5,10
  • Slim DVD-ROM Drive (Optional), 2x fixed 2.5" NVMe/SSD/HDD/SuperDOM Drive (Optional)
  • 1x PCI-E 3.0 x4 M.2, M.2 Form Factor: 2260, 2280, 22110
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots

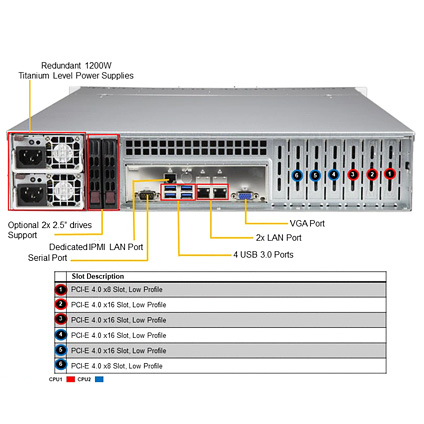

  • 1x Rear VGA, 1x Type A Port, 2x COM Ports and 6x USB Ports
  • Dual 10GBase-T LAN with Intel® X550 Ethernet Controller
  • 3x heavy duty Hot-swappable 13.5K RPM Middle Fans with optimal fan speed control
  • 1200W Redundant Titanium Power Supply
  • 25.5" Depth Rack Mount Chassis

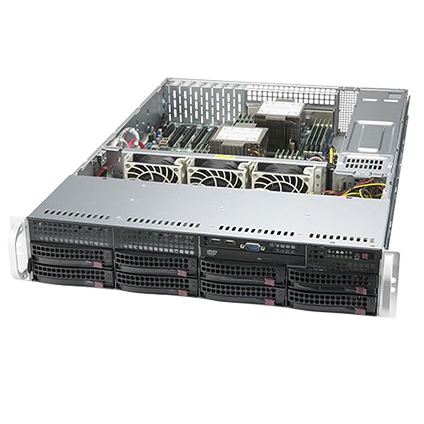

The Supermicro SuperServer 620P-TRT 2U 25.5" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 ECC 3DS LRDIMM Memory, M.2 slot and dual 10GBase-T LAN ports onboard. The Supermicro Server 620P-TRT comes with eight 3.5" hot-swap SATA3 drive bays, three heavy duty hot-swappable 13.5K RPM middle fans, and is equipped 1200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

2U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard


  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 8x 3.5" Hot-swap Drive Bays
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1200W Redundant Titanium Level Power Supply

Barebone Only:

$2,335.00

Configured:

$4,415.00

Customize
