Supermicro Twin SuperServer SYS-620TP-HTTR


High Performance Computing
Hyper-Converged Infrastructure
Big Data / Big Science

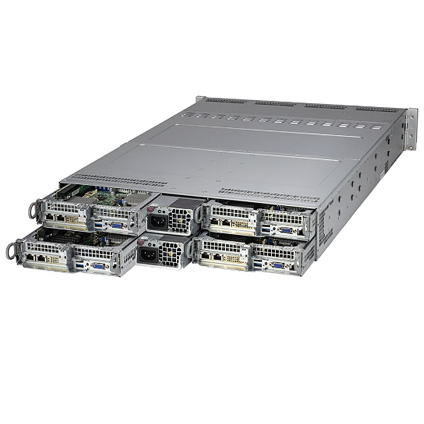

Four Hot-pluggable Systems (Nodes) in a 2U Form Factor. Each Node Supports the Following:

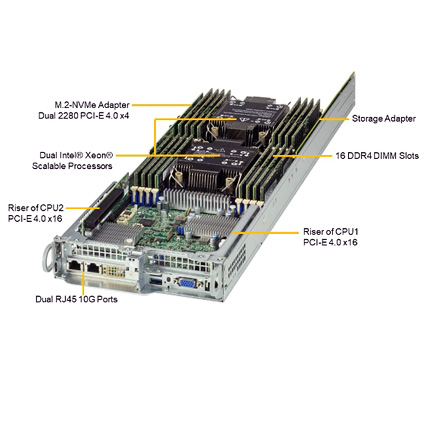

  • Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM

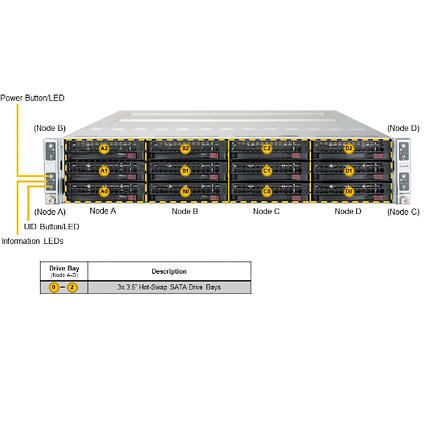

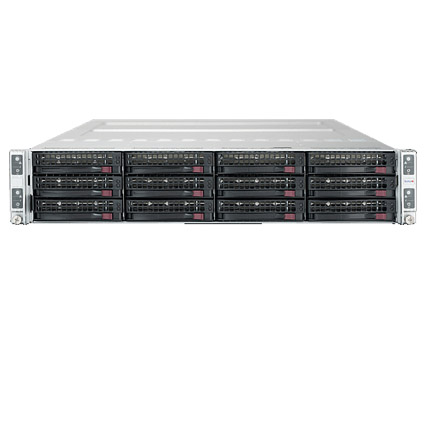

  • 3x 3.5" Hot-swap SATA Drive Bays

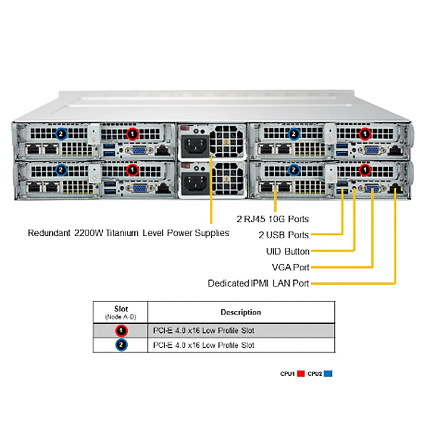

  • 2x PCI-E 4.0 x16 (LP), 1x PCI-E 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  • Intel® X710 Dual port 10GBase-T LAN onboard
  • 4x Heavy Duty 80m PWM Fans with Optimal Fan Speed Control (Per System)
  • ASPEED AST2600 BMC, 2 USB, VGA. RoT, 2 SATADOM ports SATA (6Gbps); 3 slots per node; RAID 0, 1, 5 support.

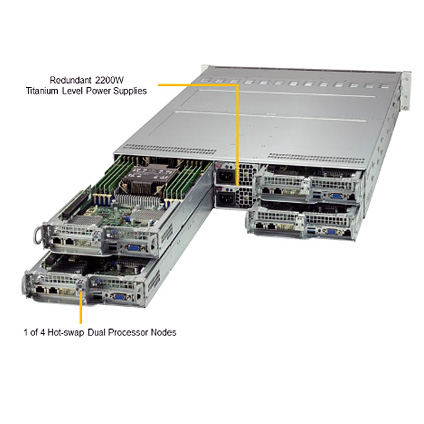

  • Two 2200W Redundant Titanium Level Power Supply
  • 30.5" Depth Rack Mount Chassis

Supermicro Twin SuperServer 620TP-HTTR 2U 4-nodes high performance rackmount server. Each nodes supports dual socket 3rd Gen. Intel Xeon Scalable Processor, up to 4.0TB DDR4 ECC RDIMM/LRDIMM memory. The 620TP-HTTR 2U Racknount Server comes with 12x hot-swap 3.5" SATA drive bays, four 80mm heavy duty fans, and is equipped with 2200W redundant titanium level power supply.
