Supermicro Storage SuperServer 640P-E1CR24H 24x 3.5" SATA3/SAS3 Drive Bays HW RAID Support


Enterprise Server
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
  • 4U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots, Up to 4TB

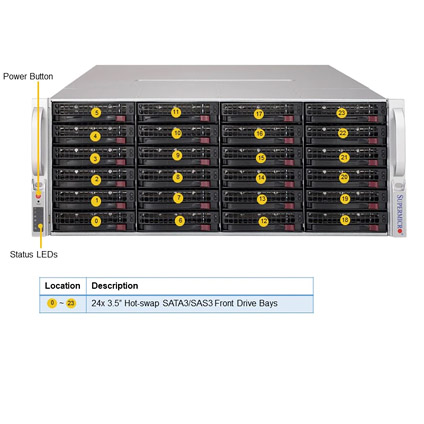

  • 24x Hot-swap 3.5"/2.5" SATA3/ SAS3 drive bays
    2x Rear Hot-swap 2.5'' drive bays
  • Hard Ware RAID support via Broadcom® 3908 Controller
  • 1x SATA/ NVMe M.2 (form factor: 2280 and 22110)

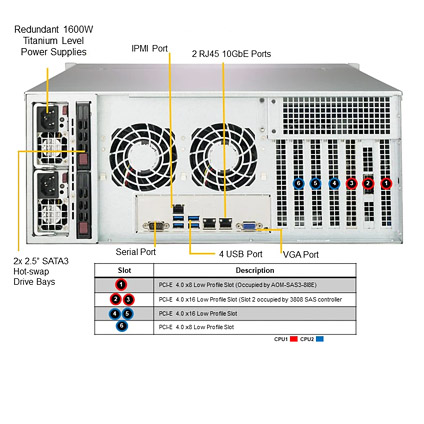

  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN Ports, Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  • 5x 80mm Hot-swap counter-rotate redundant PWM cooling fans
  • 1200W Redundant Titanium Power Supply
  • 26" Depth Rack Mount Chassis

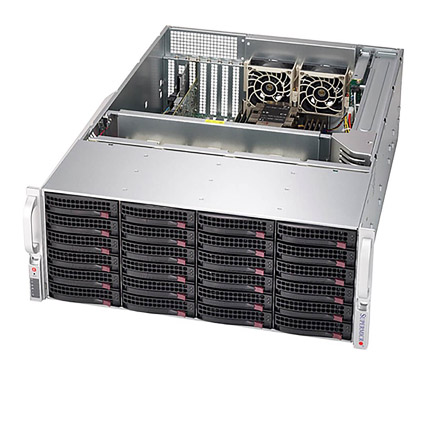

The Supermicro Storage SuperServer 640P-E1CR24H 4U 26" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, 1 M.2 slot and dual 10GbE LAN ports onboard. The Supermicro SuperServer 640P-E1CR24H comes with 24x 3.5" hot-swap SAS3/SATA3 drive bays with hard ware RAID support via Broadcom® 3908 controller, 2x rear 2.5'' hot-swap drive bays. The Supermicro Server 640P-E1CR24H is equipped with 5x 80mm hot-swap counter-rotate redundant PWM cooling fans, and 1200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard

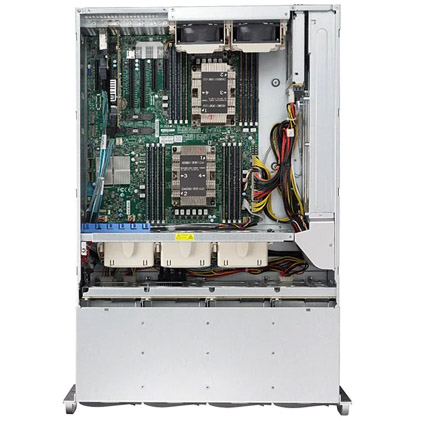

  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 24x 3.5" Hot-swap Drive Bays, Hard Ware RAID support via Broadcom® 3908
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1200W Redundant Power Supply, Titanium Level High-efficiency
