Supermicro Storage SuperServer 640P-E1CR24L w/ 24x 3.5" SATA3/SAS3 Drive Bays

Features:


Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks
  • 4U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots, Up to 4TB

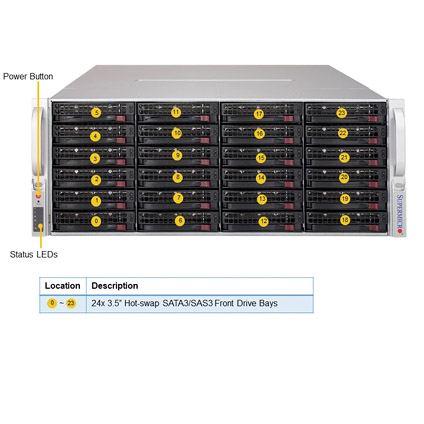

  • 24x Hot-swap 3.5"/2.5" SATA3/ SAS3 drive bays

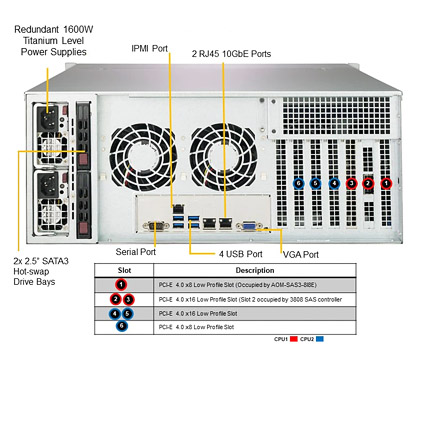

    2x Rear Hot-swap 2.5'' drive bays
  • HBA Controller support via Broadcom® 3808
  • 1x NVMe/SATA M.2 (form factor: 2280 and 22110)
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN, Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  • 5x 80mm Hot-swap counter-rotate redundant PWM cooling fans
  • 1200W Redundant Titanium Power Supply
  • 26" Depth Rack Mount Chassis

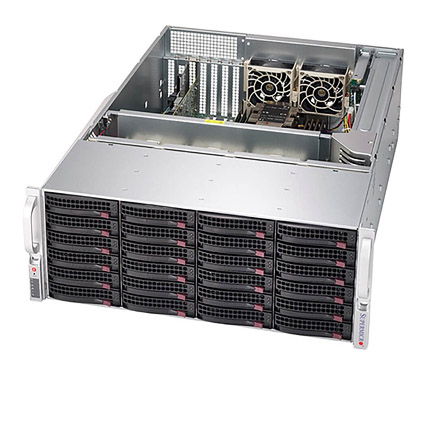

The Supermicro Storage SuperServer 640P-E1CR24L 4U 26" depth Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/ DCPMM Memory, 1 M.2 slot and dual 10GbE ports onboard. The Supermicro Server 640P-E1CR24L supports 24x 3.5"/2.5" hot-swap SAS3/SATA3 drive bays, and 2x rear 2.5'' hot-swap drive bays. The Supermicro 640P-E1CR24L comes with 5x 80mm hot-swap counter-rotate redundant PWM cooling fans, and is equipped with 1200W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Barebone & Base Configurations

4U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard


  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • Intel® C621A Chipset
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 24x 3.5" Hot-swap Drive Bays
  • HBA Controller support via Broadcom® 3808
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1200W Redundant Power Supply, Titanium Level High-efficiency

Barebone Only:

$3,665.00

Configured:

$5,935.00

Customize
