Supermicro Storage SuperServer 640P-E1CR36H w/ 36x 3.5" SATA3/SAS3 Drive Bays


Enterprise Server
HPC, Data Center
Database Processing & Storage
Corporate Database
  • 4U Rackmount Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots, Up to 4TB

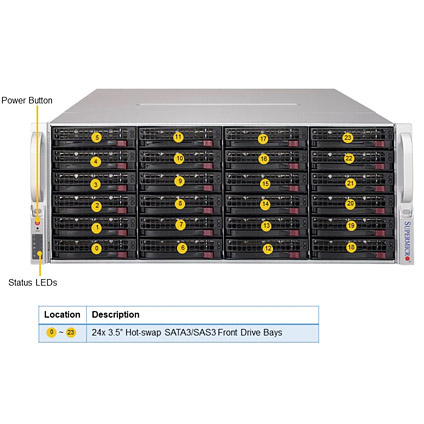

  • 36x Hot-swap 3.5"/2.5" SATA3/ SAS3 drive bays (4 Hybrid NVMe)

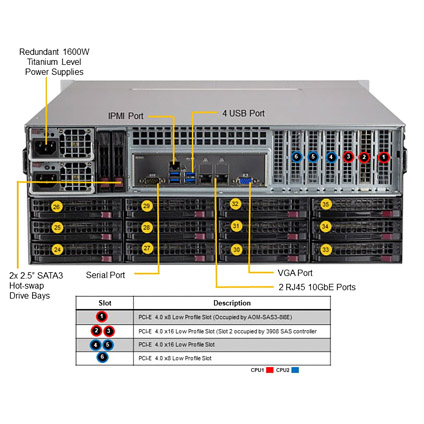

    2x Rear Hot-swap 2.5'' drive bays
  • Hard Ware RAID support via Broadcom® 3908 Controller
  • 1x NVMe/SATA M.2 (form factor: 2280 and 22110)
  • 4x PCI-E 4.0 x16 (LP) slots, 2x PCI-E 4.0 x8 (LP) slots
  • 2x 10GbE LAN, Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
  • 7x 80mm Hot-swap counter-rotate redundant PWM cooling fans
  • 1600W Redundant Titanium Power Supply
  • 27.5" Depth Rack Mount Chassis

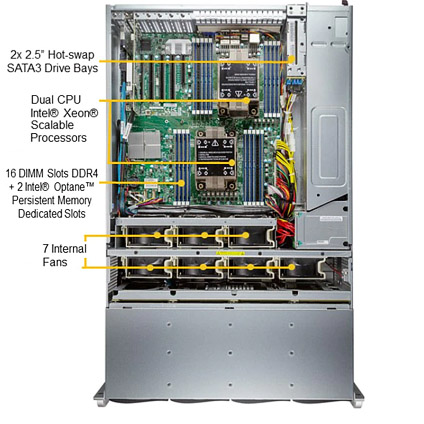

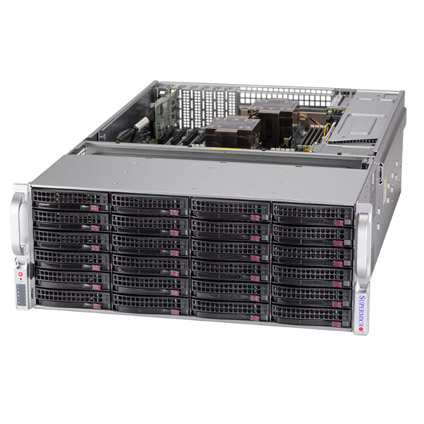

The Supermicro Storage SuperServer 640P-E1CR36H 4U Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM/DCPMM Memory, M.2 NVMe slot and dual 10GbE ports onboard. The Supermicro Server 640P-E1CR36H comes with 36x 3.5" hot-swap drive bays with Broadcom® 3908 hard ware RAID controller, 2x rear 2.5'' hot-swap drive bays, 7x 80mm hot-swap counter-rotate redundant PWM cooling fans, and is equipped with 1600W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DPi-NT6 Motherboard

  • Supermicro X12DPi-NT6 Motherboard
  • 2x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 32GB(4x 8GB) DDR4 ECC Registered Memory
  • 36x 3.5" Hot-swap Drive Bays
  • Hard Ware RAID support via Broadcom® 3908
  • 1x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 1600W Redundant Power Supply, Titanium Level High-efficiency
