Supermicro Storage SuperServer 640SP-DE1CR60 w/ 60 3.5" SATA3/SAS3 Drive Bays

Features:


Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection
  • 4U Rackmount Server
  • Dual Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM

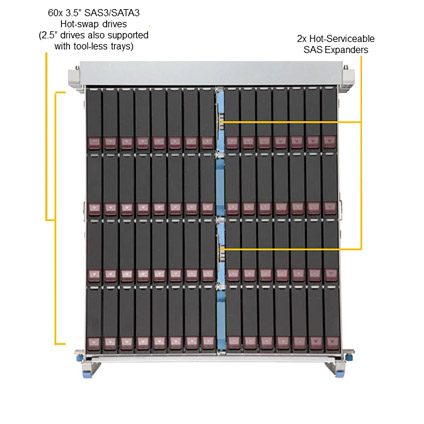

  • 60x 3.5"/2.5" Hot-swap SATA3/SAS3 Drive Bays (Each Node Controls 30 Drives)
  • Drive Controller support via Broadcom® 3916 or 3616
  • 2x M.2 NVMe
  • 3x PCI-E 4.0 x16 HHHL PCI-E Slots
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 6x 80mm Hot-swap Counter-rotate Redundant PWM Cooling Fans
  • 2600W Redundant Titanium Power Supply
  • 34.1" Depth Rack Mount Chassis

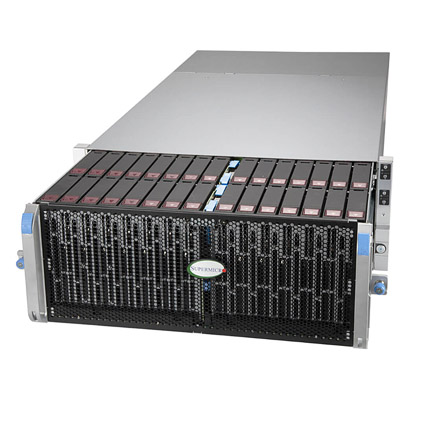

The Supermicro Storage SuperServer 640SP-DE1CR60 4U Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM Memory, two M.2 NVMe slot and dual 10GbE ports onboard. The Supermicro Server 640SP-DE1CR60 comes with 60x 3.5"/2.5" hot-swap drive bays, 6x 80mm hot-swap counter-rotate redundant PWM cooling fans, and is equipped with 2600W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DSC-6 Motherboard


  • 2x Supermicro X12DSC-6 Motherboard
  • 4x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 64GB(8x 8GB) DDR4 ECC Registered Memory
  • 60x 3.5" Hot-swap Drive Bays
  • 15x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 2600W Redundant Power Supply, Titanium Level High-efficiency

Configured:

$18,905.00

Customize
