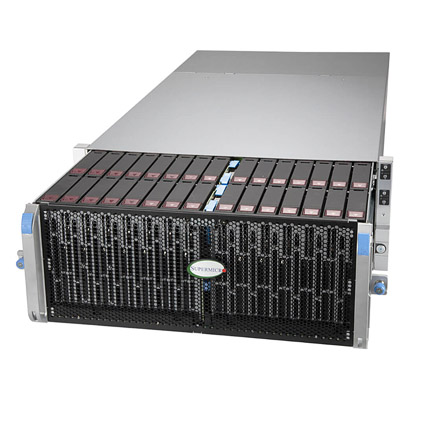

Supermicro Storage SuperServer 640SP-DE2CR60 w/ 60 3.5" SATA3/SAS3 Drive Bays

Features:


Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection
  • 4U Rackmount Server
  • Dual Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM

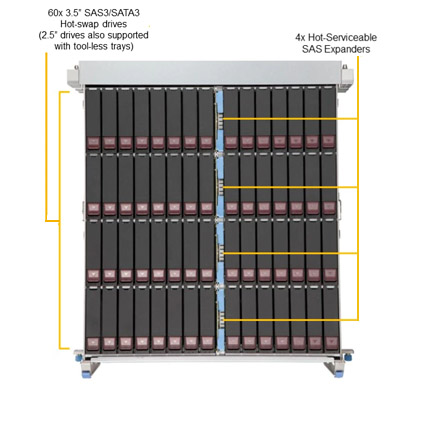

  • 60x 3.5"/2.5" Hot-swap SATA3/SAS3 Drive Bays (Each Node Controls 30 Drives)
  • 4x 2.5" 7mm Drive Bays
  • Drive Controller support via Broadcom® 3616
  • 2x M.2 NVMe (Form factor: 2280 and 22110)
  • 3x PCI-E 4.0 x16 HHHL PCI-E Slots
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • Dedicated node to node connectivity featuring high performance NTB PCI-E 4.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support
  • 6x 80mm Hot-swap Counter-rotate Redundant PWM Cooling Fans
  • 2600W Redundant Titanium Power Supply
  • 34.1" Depth Rack Mount Chassis

The Supermicro Storage SuperServer 640SP-DE2CR60 4U Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots onboard. The Supermicro Server 640SP-DE2CR60 comes with 60x 3.5"/2.5" hot-swap drive bays, 6x 80mm hot-swap counter-rotate redundant PWM cooling fans, and is equipped with 2600W redundant titanium level power supply.
