Supermicro Storage SuperServer 640SP-DE2CR90 w/ 90x 3.5" SATA3/SAS3 Drive Bays


Big Data & Analytics, Data Lake
HPC and AI/ML Workloads
Telco & Cloud Service Providers
Financial Services & Healthcare Image Archives
Content Repositories
Government Data Protection

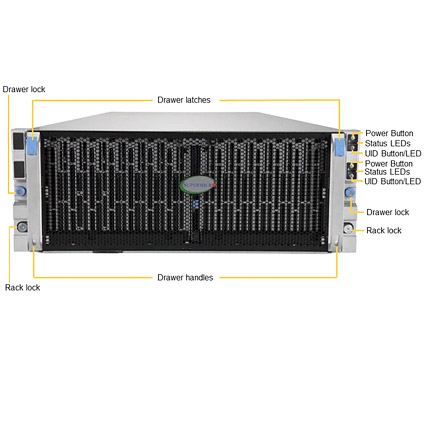

  • 4U Rackmount Server
  • Dual Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
  • Intel® C621A Chipset
  • 16x ECC DDR4-3200: LRDIMM/RDIMM

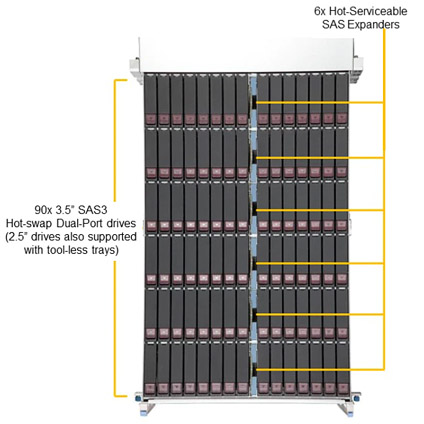

  • 90x 3.5"/2.5" Hot-swap SATA3/SAS3 Drive Bays (Each Node Controls 45 Drives)
  • 4x 2.5" 7mm Drive Bays
  • Drive Controller support via Broadcom® 3616

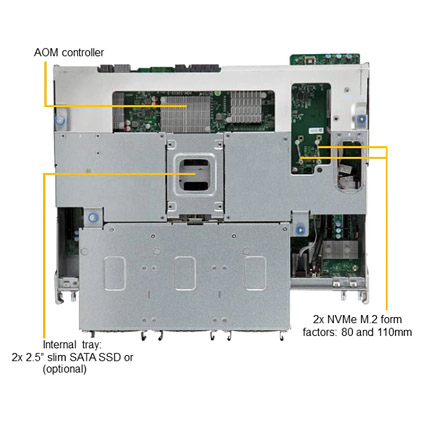

  • 2x M.2 NVMe (Form factor: 2280 and 22110)
  • 3x PCI-E 4.0 x16 HHHL PCI-E Slots
  • Server Remote Management: IPMI 2.0 / KVM over LAN / Media over LAN
  • Dedicated node to node connectivity featuring high performance NTB PCI-E 4.0 x16 , 1G private Ethernet, and IPMI for robust node fail-over support

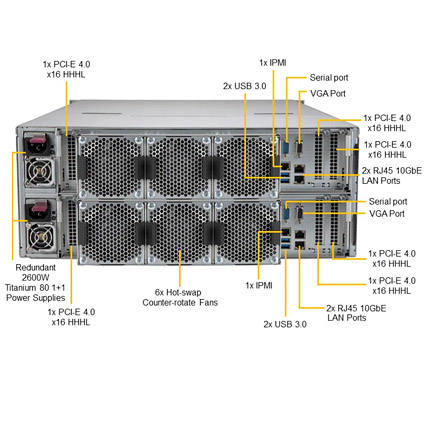

  • 6x 80mm Hot-swap Counter-rotate Redundant PWM Cooling Fans
  • 2600W Redundant Titanium Power Supply
  • 42.1" Depth Rack Mount Chassis

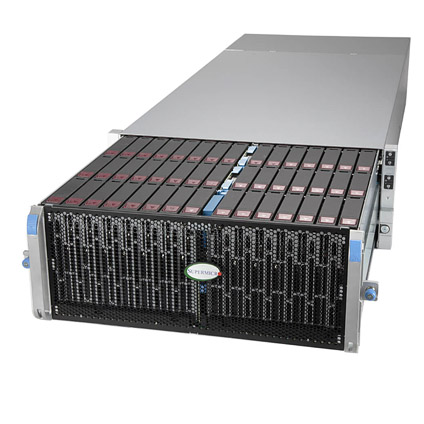

The Supermicro Storage SuperServer 640SP-DE2CR90 4U Rackmount server features dual 3rd Gen. Intel® Xeon® Scalable Processor, up to 4.0TB DDR4 RDIMM/LRDIMM Memory, two NVMe M.2 slots onboard. The Supermicro Server 640SP-DE2CR90 comes with 90x 3.5"/2.5" hot-swap drive bays, 6x 80mm hot-swap counter-rotate redundant PWM cooling fans, and is equipped with 2600W redundant titanium level power supply.

Lowest Price Guaranteed on Complete Systems. Please Ask Sales for Details.

Base Configurations

4U Supermicro Rack Mount Server With X12DSC-6 Motherboard

  • 2x Supermicro X12DSC-6 Motherboard
  • 4x Twelve-core Intel® Xeon® Silver 4310 Processor (18MB Cache, 2.10 GHz)
  • 64GB(8x 8GB) DDR4 ECC Registered Memory
  • 90x 3.5" Hot-swap Drive Bays
  • 2x Broadcom 3616 SAS 3.0 12Gb/s 16-port SAS Controller
  • 23x 2.0TB SATA3 6.0Gb/s 7200RPM 3.5" Enterprise Hard Drive
  • Built-in Video
  • Built-in 2x 10GBase-T LAN, 1x IPMI LAN
  • 2600W Redundant Power Supply, Titanium Level High-efficiency
