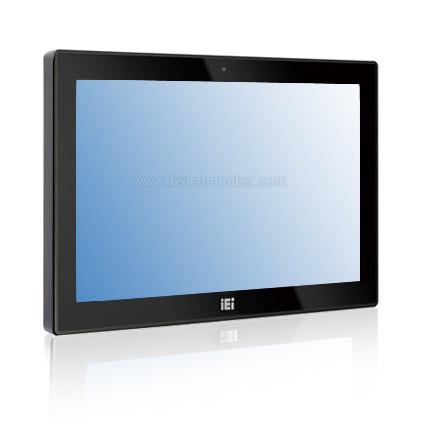

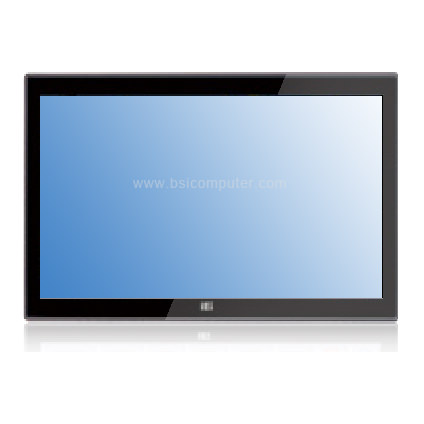

AFL3-12A-BT - 12.1" Fanless Panel PC


  • 12.1" Light Industrial Interactive Panel PC
    1024 x 768 500nits Touch Screen, with LED Backlight
  • Supports Resistive Touch or Optional Projected Capacitive Touch Screen
  • Intel® Celeron® J1900 2.0 GHz Quad Core Processor
  • 1 x 204-pin DDR3L SO-DIMM Memory (Max. 8GB)
  • 1 x 2.5" SATA 3Gb/s HDD Bay, 1 x mSATA Slot
  • Supports Wi-Fi 802.11a/b/g/n/ac High Speed Wireless Module
  • Built-in 2 Megapixel Camera with Low Light Function
  • Built-in 2 x 3W Internal Speakers
  • Mifare 13.56 MHz Card Reader (Optional)
  • Magnetic Stripe Card Reader (Optional)
  • IP64 Compliant Front Panel
  • 9-30V Wide Range DC Power Input

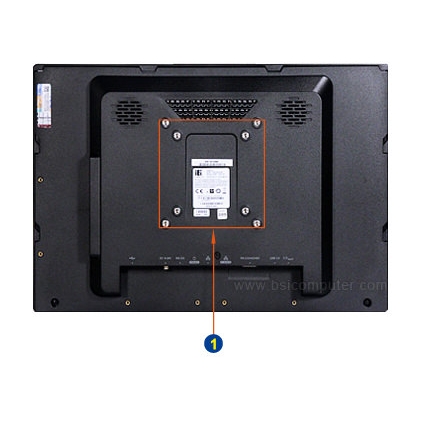

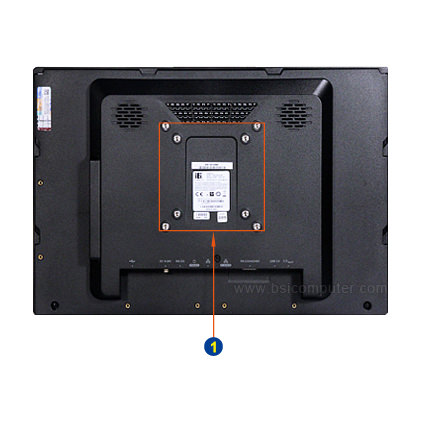

  • Mounting Kit Supports Wall, Stand, Arm VESA 75mm x 75mm, 100mm x 100mm (Optional)

The AFL3-12A-BT is a 12.1" Fan-less Panel PC supporting Intel's Celeron J1900 2.0 Quad Core Processor and an IP64 compliant front panel. There is a 204-pin 1333MHz DDR3L slot supports up to 8GB memory. The Touch Screen is a 5-wire resistive touch projected capacitive screen and offers 500nits, a 700:1 contrast ratio and a 1024x768 resolution. The Panel PC has a 2MP low light camera and 3W built-in speakers.

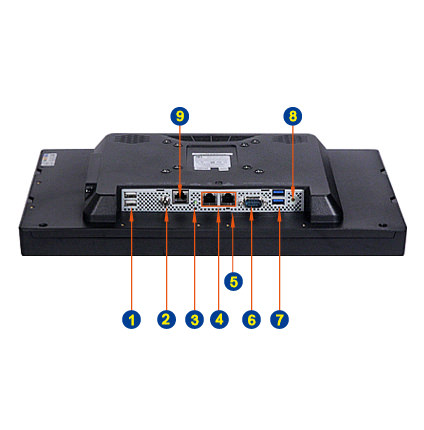

On the inside, the AFL3-12A-BT has room for a 2.5" SATA 3Gbps drive and one mSATA slot. For peripherals and additional equipment, there is one RS-232 and one RS-232/422/485 Com Port, two USB 3.0 and two USB 2.0. Two RJ-45 for GbE LAN and an IEEE 802.11 a/b/g/n/ac wireless are standard as well. A Mifare 13.56 MHz card reader and a magnetic strip card reader is optional. The AFL3-12A-BT accepts a wide range of DC power input from 9-30VDC and can be mounted via Panel, Wall, Rack, Stand and Arm.

Barebone & Base Configurations

AFL3-12A-BT 12.1" Fanless Touch Panel PC

  • 12.1" 1024 x 768 Resistive Touch Touchscreen, LED Backlight
  • Projected Capacitive Touchscreen (Optional)
  • Intel® Celeron® J1900 2.0 GHz Quad Core Processor
  • 4GB DDR3L SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
  • 2 x Gigabit Ethernet Ports
  • 2 x USB 3.0, 2 x USB 2.0 Ports
  • Built-in 802.11 a/b/g/n/ac Wireless Module
  • IP64 Compliant Front Panel
  • 60W 90~264VAC Power Adapter

Barebone Only:
