AFL3-W15C-ADLP 15.6" Industrial Panel PC
Features:
- 15.6" Wide Screen Light Industrial Panel PC
- 1920 x 1080 (16:10) 450nits Brightness
- Projected Capacitive Touch Screen with Anti-UV / Anti-glare Coating
- 12th Gen Intel® Core™ Mobile i7/i5/i3 Processor
- 2 x 260-pin DDR4 SO-DIMM Memory (Max. 32GB)
- 2 x M.2 2280 M-key (PCIe x4), 1 x M.2 3080 B-key (PCIe x1 or SATA) support IPMI function
- Support Wi-Fi 6E and Bluetooth 5.2
- Selectable AT/ATX Power Mode
- Built-in Speakers, Camera and Microphone
- IP64 Compliant Front Panel
The AFL3-W15C-ADLP high-performance fanless panel computer stands out as a powerhouse in the computing realm, supporting 12th Gen Intel® Core™ i7/i5/i3 processors. Backed by 8GB of DDR4 memory, it ensures seamless multitasking and robust performance. Its HDMI output enables easy connectivity to external displays, while the dual 2.5GbE LANs offer high-speed networking capabilities. This panel computer goes a step further with IPMI remote management, enhancing its accessibility and maintenance efficiency. It features three M.2 expansion slots, providing ample room for customization and scalability. Boasting a 10-point capacitive touchscreen with anti-glare, UV-resistant properties, this RoHS-compliant device ensures durability and usability in various environments, making it an ideal choice for demanding industrial applications.
Barebone & Base Configurations
- 15.6" 1920 x 1080 450nits, Anti-UV/AG Coating Projected Capacitive Touch
- 12th Generation Intel® Core™ i3-1220P on-board processor
- 12th Generation Intel® Core™ i5-1240P on-board processor (Optional)
- 12th Generation Intel® Core™ i7-1260P on-board processor (Optional)
- 8GB DDR4 SO-DIMM Memory
- 250GB M.2 NVME Solid State Drive

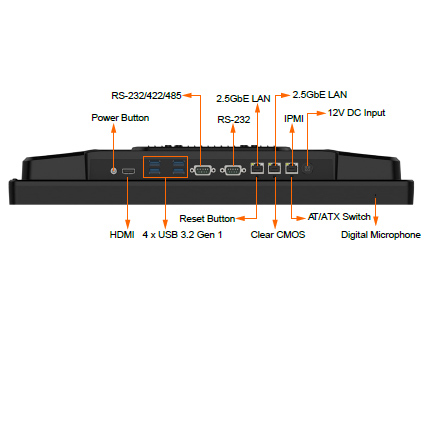

- 1 x RS-232 (DB9), 1 x RS-232/422/485 (DB9)
- 4 x USB 3.2 Gen 1
- IEEE 802.11ax 2T2R Module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key)
- 2 x 2.5GbE LAN, 1 x IPMI LAN
- 12V DC Power Input
