AFL4-W07-EHL 7" Industrial Panel PC
Features:
- 7" 1024 x 600 (16:9) 450nits w/ Multi-point Projected Capacitive Touch Screen
- Narrow Bezel Design
- Anti-glare and Anti-UV PCAP
- Support Gloved and Wet Hand Operation
- Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
- Dual channel 8GB LPDDR4x On Board
- Support WiFi 6E and Bluetooth® 5.2
- Built-in 1.2W Internal Speakers
- Body Material: Aluminum die Casting
- IP64 Compliant Front Panel
- Mounting Supports Wall, Stand, Arm, VESA 75mm x 75mm (Optional)

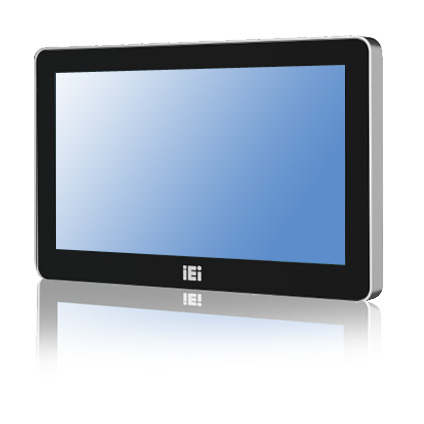

The AFL4-W07-EHL is a 7" fanless touch panel PC with an Antiglare/UV projected capacitive touch screen. The screen has a brightness of 450 nits and a resolution of 1024x600. The internal motherboard is equipped with an Intel Celeron J6412 processor paired with 8GB of LPDDR4 memory. Available storage capacity ranged anywhere from 128MB to 1TB in the form of an M.2 SSD. For the I/O interface, there are 2x RS-232/422/485 COM ports and 1x 2.5GBE LAN port. USB support includes 3.2 and 2.0.
Barebone & Base Configurations
AFL4-W07-EHL 7" Fanless Touch Panel PC
- 7" 1024 x 600 450nits Projected Capacitive Touch Screen
- Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
- 8GB LPDDR4 On-board
- 256GB M.2 2242 SATA Solid State Drives

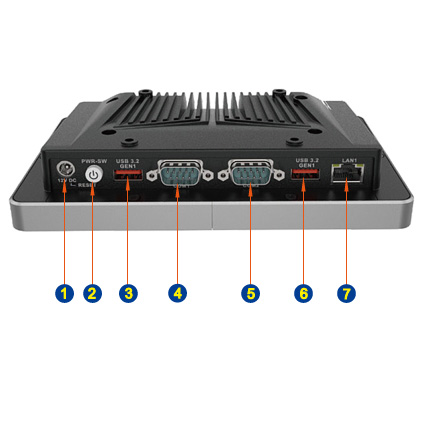

- 2 x RS-232/422/485 (DB9)
- 1 x 2.5GbE LAN

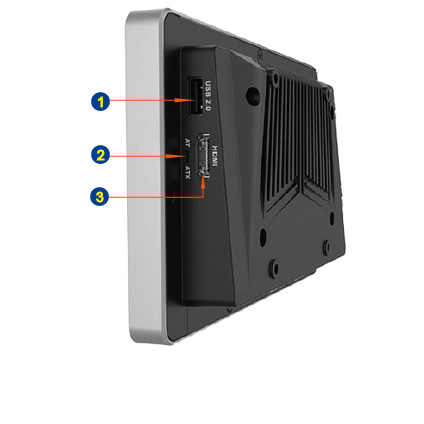

- 2 x USB3.2, 1 x USB2.0
- HDMI
- IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 A-key)
- IP 64 Compliant Front Panel
- Power Adapter
