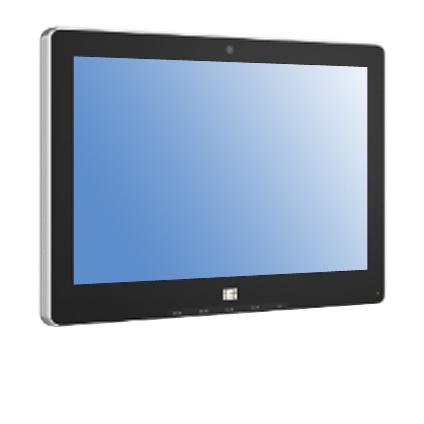

AURA-W101-RK3576 10.1" Heavy Industrial Panel PC
Features:

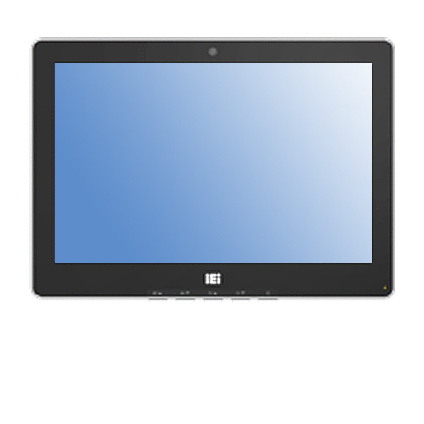

- 10.1" 1280 x 800 400 nits TFT LCD
- IP65-rated Front Panel with Robust Aluminum Bezel
- Flat-bezel PCAP Touch with Anti-glare / Anti-UV Coating
- PCAP Touch with Glove-friendly Operation
- Rockchip RK3576 octa-core SoC with 6 TOPS NPU for edge AI acceleration
- 8GB LPDDR5 On-board Memory, up to 16GB
- 64GB eMMC NAND FLASH
- Front-panel Hard Keys (Hotkeys)
- Front-facing Speakers & Integrated Camera Options, ideal for HMI and Vision-assisted Applications
- Rich I/O & Wide-range Power Input (10–28V DC) for Industrial Integration
Base Configurations
AURA-W101-RK3576 Heavy Industrial Panel PC
- 10.1" 1280 x 800 400 nits TFT LCD Display with Projected Capacitive Touch Screen
- 720P Wide Angle Fixed Focus Camera, 2 x Internal 2W Speakers
- Rockchip RK3576 (Quad Cortex-A72 and quad Cortex-A53, 6 TOPS NPU)
- 8GB LPDDR5 Memory
- 64GB eMMC NAND FLASH

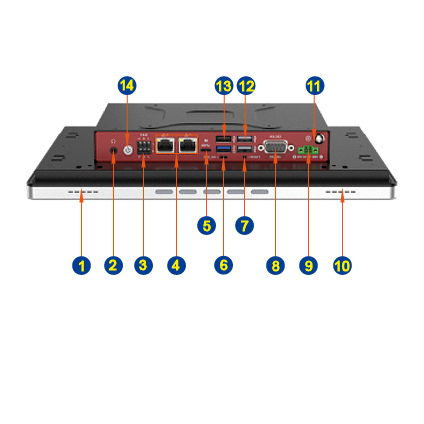

- 2 x RS232 & 2 x 485 By 1 x DB9
- 1 x USB 3.2, 3 x USB 2.0, 1 x USB Type-C (USB 3.2 Gen1 + DisplayPort Alt Mode)
- 1 x M.2 B Key 3042/52/80 (PCIe Gen2 x1,USB2.0)
1 x On-board SIM Card Socket (Hinge type) for M.2 B key, 1 x SD Slot - 2 x CAN 2.0 (6-pin Terminal Block)
- 2 x GbE LAN
- 10-28V DC Power Input
Configured: |
$649.00 |
