AURA-W156-RK3576 15.6" Heavy Industrial Panel PC

Features:

  • 15.6" 1920 x 1080 450 nits TFT LCD
  • IP65-rated Front Panel with Robust Aluminum Bezel
  • Flat-bezel PCAP Touch with Anti-glare / Anti-UV Coating
  • Rockchip RK3576 octa-core SoC with 6 TOPS NPU for edge AI acceleration
  • 8GB LPDDR5 On-board Memory, up to 16GB
  • 64GB eMMC NAND FLASH
  • Front-panel Hard Keys (Hotkeys)
  • Front-facing Speakers & Integrated Camera Options, ideal for HMI and Vision-assisted Applications
  • Rich I/O & Wide-range Power Input (10–28V DC) for Industrial Integration

The AURA-W156-RK3576 is a rugged 15.6-inch industrial panel PC engineered for reliable performance in demanding industrial environments. Its IP65-rated front panel and robust aluminum bezel provide protection against dust and water, while the flat-bezel PCAP touchscreen with anti-glare and anti-UV coating ensures excellent visibility in bright conditions. Powered by the Rockchip RK3576 octa-core processor with a 6 TOPS NPU, it delivers powerful edge AI computing for intelligent automation and vision-based applications. The system also features glove-friendly touch operation, front-panel hotkeys for quick access to key functions, and optional front-facing speakers and an integrated camera for enhanced HMI interaction. With rich I/O connectivity and a wide 10–28V DC power input range, the AURA-W156-RK3576 offers flexible integration into a wide range of industrial systems.

Base Configurations

AURA-W156-RK3576 Heavy Industrial Panel PC

  • 15.6" 1920 x 1080 450 nits TFT LCD Display with Projected Capacitive Touch Screen
  • 720P Wide Angle Fixed Focus Camera, 2 x Internal 2W Speakers
  • Rockchip RK3576 (Quad Cortex-A72 and quad Cortex-A53, 6 TOPS NPU)
  • 8GB LPDDR5 Memory
  • 64GB eMMC NAND FLASH

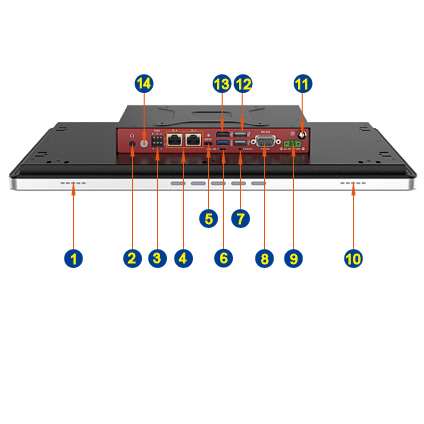

  • 2 x RS232 & 2 x 485 By 1 x DB9
  • 1 x USB 3.2, 3 x USB 2.0, 1 x USB Type-C (USB 3.2 Gen1 + DisplayPort Alt Mode)
  • 1 x M.2 B Key 3042/52/80 (PCIe Gen2 x1,USB2.0)
    1 x On-board SIM Card Socket (Hinge type) for M.2 B key, 1 x SD Slot
  • 2 x CAN 2.0 (6-pin Terminal Block)
  • 2 x GbE LAN
  • 10-28V DC Power Input

Configured:

$1,349.00

Customize
