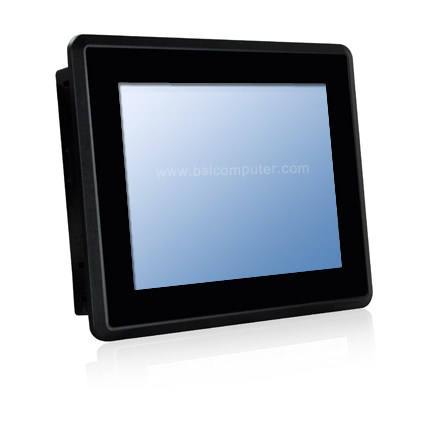

DM-F08A 8" High Brightness Industrial Monitor


  • 8" 500nits High Brightness TFT LCD with 800x600 Resolution
  • 5-Wire Resistive Single Touch Screen

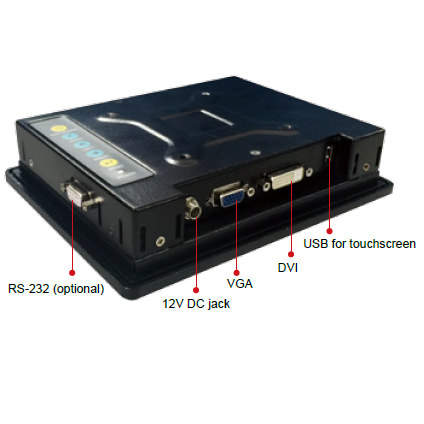

  • VGA, DVI Flexible Video Input Solution
  • Aluminum Front Panel meets IP65 Standard for Tough Working Environment
  • Aesthetic Ultra-thin Bezel for Seamless Panel Mount Installation
  • DC Input

DM-F08A 8" industrial LCD monitor features 500nits high brightness TFT LCD and wide viewing angles. It supports resistive touch screen. The DM-F08A comes with triple flexible video input ports, and robust IP65 aluminum front bezel for shacking and vibration requirement. This industrial LCD monitor provides high end features at a very economical price.

Base Configurations

DM-F08A Industrial LCD Monitor

  • 8" 800x600 TFT LCD
  • 500nits Brightness, 500:1 Contrast Ratio
  • 5-Wire Resistive Single Touch Screen
  • 262K Colors
  • View Angle: 140°H/120°V
  • Input: VGA, DVI
  • Power: 12V DC Power Input, Power Adapter Included
  • Operating Temp: -4°F-122°F (-20°C-60°C)
  • Dimensions: 8.74" x 7.17" x 1.68" (W x H x D)
