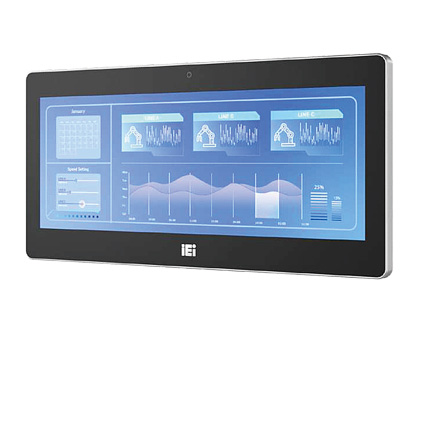

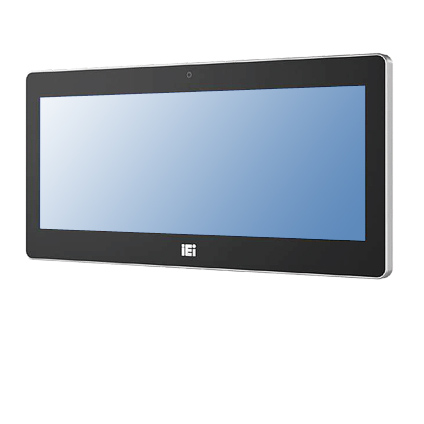

DM2-UW123J 12.3" IP65 Industrial Monitor
Features:
- 12.3”(8:3) 850nits brightness TFT LCD with 1920x720 resolution
- 10-point projected capacitive touch window (anti-UV, anti-glare surface)
- Supports gloved operation and waterproof protection
- Front OSD, easy access for setting adjustment
- Speakers positioned at the front, ensuring clear sound delivery even in panel mount
- Built-in camera, ideal for AI facial recognition
- USB 3.2 Gen1 Type-A supports 10W
- IP65 compliant front panel with aluminum frame, Sheet metal Rear Cover
- Anti-glare and anti-UV PCAP
The DM2-W123J industrial monitor is engineered to meet the rigorous demands of industrial environments with its robust features. Its front OSD allows for effortless setting adjustment, while the front-positioned speakers ensure clear sound delivery, even when panel-mounted. Supporting gloved operation and offering waterproof protection, this monitor is highly adaptable to various industrial applications. The built-in camera is optimized for AI facial recognition, enhancing security and operational efficiency. Moreover, the monitor features a USB 3.2 Gen1 Type-A port supporting 10W power delivery for added versatility. Its IP65 compliant front panel, coupled with an aluminum frame, ensures durability and protection against environmental factors. Additionally, the anti-glare and anti-UV PCAP screen enhances visibility and longevity, making the DM2-W123J an ideal choice for industrial settings requiring reliable and high-performance displays.
Base Configurations
- 12.3" 1920x720 TFT LCD
- 850nits Brightness, 1000:1 Contrast Ratio
- Projected Capacitive Flat Multi-touch Screen
- 16.7M Colors
- View Angle: 170°H/170°V

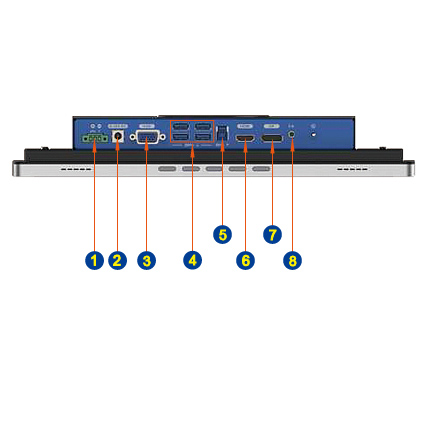

- Input: VGA, HDMI, DisplayPort
- Built-in Camera and Speakers
- Power: 90-36V DC Power Input
- Operating Temp: -4°F~140°F (-20°C~60°C)
- Dimensions: 12.86" x 6.32" x 1.94" (W x H x D)
Power Adapter (Optional)
