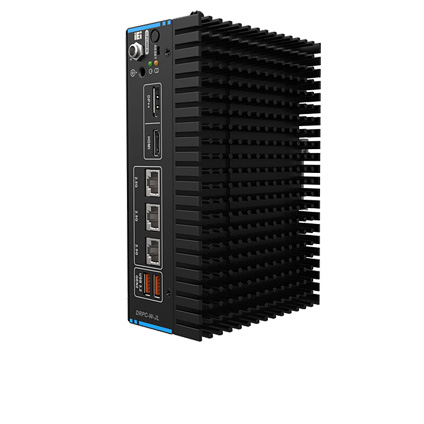

DRPC-W-JL Fanless DIN-Rail Embedded Computer System


  • Intel® Celeron® N5105 2.0 GHz Quad-core Processor
  • 1 x DDR4 2933 MHz SO-DIMM (Max. 16GB)
  • 1 x 2.5'' SATA 6Gb/s HDD Bay
  • 1 x M.2 A Key
  • 1 x M.2 B Key (with SIM Card Slot)
  • 2 x USB 3.2 Gen 2
  • 3 x 2.5GbE LAN Ports
  • Support Dual Independent Display

The DRPC-W-JL is a fanless DIN-rail embedded system with an optimized thermal design utilizing a pin-fin heatsink. The chassis is constructed using a durable extruded aluminum alloy. The system is equipped with an Intel® N5105 2.0 GHz processor which runs on an SoC chipset and is paired with 1 x DDR4 2933 MHz SO-DIMM memory of up to 16 GB. The I/O interface includes 2 x USB 3.2 ports, and 3 x 2.5 GbE ports. The display options included for the system give the user one HDMI port and one display port. Additional features include the Intel PTT for trusted computing and programmable watchdog timer from 1-255 sec/min. Operating system support allows the installation of Windows 10/11 and also Linux.

Barebone & Base Configurations

DRPC-W-JL Din-rail Fanless Embedded PC

  • Intel® Celeron® N5105 2.0 GHz Quad-core Processor
  • 8GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 2 x USB 3.2
  • 3 x 2.5 GbE LAN
  • 1 x HDMI, 1 x DisplayPort
  • 1 x M.2 A Key 2230 for WIFI & BT (Optional)
  • 1 x M.2 B Key (PCIe x2) 2242/2280 w/ SIM Slot for 5G (Optional)
  • 12 VDC Power Input, 60W Power Adapter (Optional)

Barebone Only:
