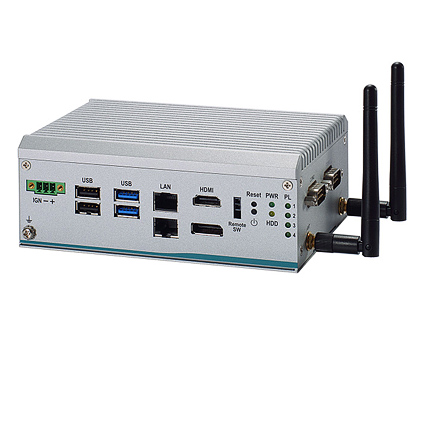

eBOX100A Fanless Embedded System with Intel Alder Lake-N Processor
Features:
- Intel Processor N97 Quad-core SoC (Alder Lake-N)
- 1 x 262-pin DDR5-4800 SO-DIMM (Max. 16GB)
- Available in 2-port or 4-port 2.5GbE Configurations
- Intelligent Power Management for USB Power On/Off Control
- Supports HDMI (FHD) and DisplayPort++ for Dual Displays
- TPM 2.0

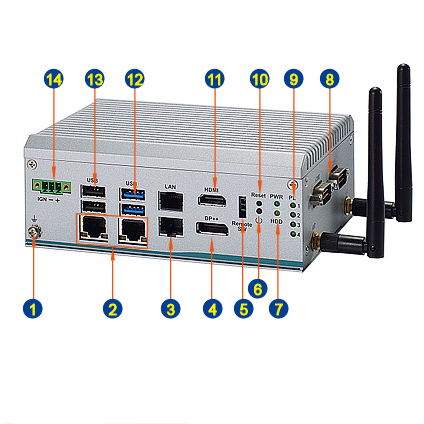

- Front-access I/O Design
- Operating Temperature Range: -40°F to +140°F

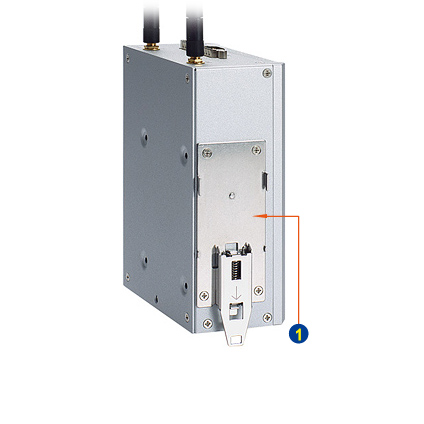

- Multiple Mounting Designs: Wall mount, DIN-rail and VESA mount
The eBOX100A is a fan-less embedded computer designed for rugged and demanding environments. Powered by an Intel N97 quad-core SoC (Alder Lake-N) processor and supporting up to 16GB DDR5 RAM, it delivers efficient performance for industrial and edge computing applications. With an operating temperature range of -40°C to +60°C, it ensures reliability in extreme conditions. The system offers flexible networking with 2 or 4-port 2.5GbE versions, along with intelligent power management for USB control. Dual-display support via HDMI (FHD) and DisplayPort++ enables versatile visualization, while its front-access I/O design simplifies maintenance and connectivity. Ideal for automation, transportation, and IoT deployments, the eBOX100A combines durability with high-performance computing.
Barebone & Base Configurations
- Intel Processor N97 (6M Cache, up to 3.60 GHz
- 8GB DDR5 SO-DIMM Memory
- 480GB 2.5" SATA Solid State Drive
- 2 x RS-232/422/485 (DB-9) COM Ports
- 2 x 2.5GbE LAN (eBOX100A-N97-2E) or 4 x 2.5GbE LAN (eBOX100A-N97-4E)
- 1 x HDMI, 1 x DisplayPort
- 1 x M.2 E Key, 1 x PCIe Mini Slot, 1 x SIM
- 2 x USB 3.2, 2 x USB 2.0
- 9~36 VDC Power Input
96W 12V Power Adapter (Optional)
Configured: |
$605.00 |
