Features:

• Intel Processor N150 Quad core SoC (Twin Lake)
• 8GB LPDDR5 Onboard Memory (16GB Option)
• 1 x M.2 2280 Key M for NVMe SSD
• 1 x 2.5" SATA HDD/SSD (up to 15 mm Height)
• 2 x 2.5GbE, 6 x USB, 1 x DIO and 4 x COM
• 1 x M.2 Key E 2230, and 1 x Mini PCIe
• 2 x HDMI (FHD) for Dual Display

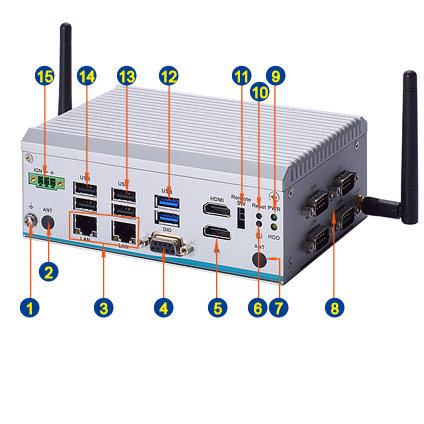

• Front-access I/O Design
• TPM 2.0
• Wide Operating Temperature -40°F to +158°F
• Intelligent Power Management: Ignition and USB Power On/Off Control

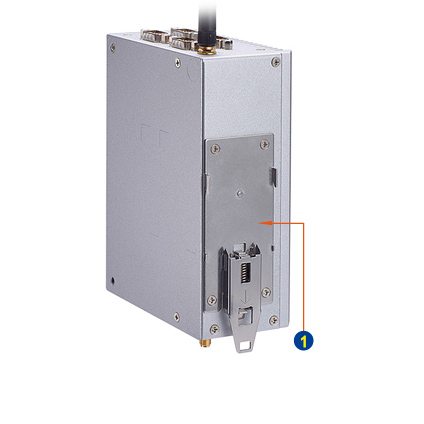

• Multiple Mounting Designs: Wall mount, DIN-rail and VESA Mount (Optional)

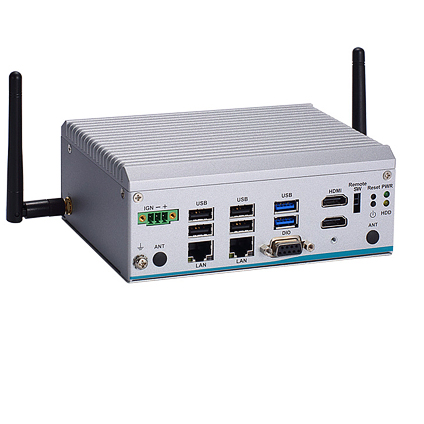

The EBOX100B is a compact, fanless embedded AI system built around the energy-efficient Intel® Processor N150 Quad-core SoC (Twin Lake). It features 8GB of onboard LPDDR5 memory (with a 16GB option available) and supports a wide operating temperature range from -40°C to +70°C, ensuring reliable performance in harsh environments. Intelligent power management includes ignition and USB power on/off control, ideal for automotive or mobile deployments. Connectivity options are extensive, offering dual 2.5GbE ports, six USB ports, one DIO, and four COM ports.
Dual HDMI outputs provide full HD display capability, while expansion is handled by M.2 Key E 2230, M.2 Key M 2280, and Mini PCIe slots. The front-access I/O design simplifies installation and maintenance in rack or panel-mount scenarios.
