eBOX700-891-FL Fanless Embedded PC with 6th/7th Gen Intel Core i7/i5/i3 & Celeron Processor

Features:

  • 6th/7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors
  • Intel® H110 Chipset
  • 2x 260-pin DDR4 SO-DIMM (Max. 32GB)
  • 1x 2.5" SSD/HDD
  • 2x HDMI, 1x DisplayPort
  • 2x COM, 6x USB, 4x GbE LAN Ports
  • 1x PCIe x4 Expansion Slot, 2x Full-size PCI Express Mini Card Slots
  • Fanless operating temperature range from -40°F to +122°F

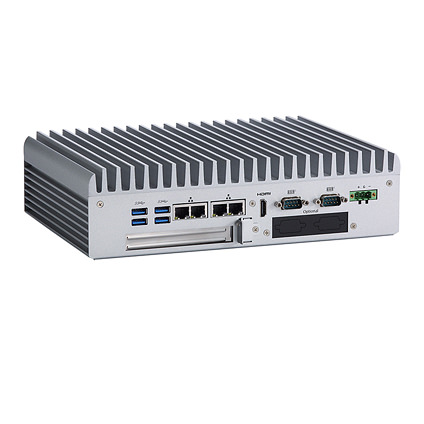

The eBox-700-891-FL is an Embedded PC measuring just 11.02" x 7.48" x 3.93", constructed of aluminum extrusion and heavy-duty steel with an IP40 rating. This Embedded PC can operated in a wide variety of temperatures ranging from -40°F ~ +122°F. It supports an LGA1151 socket 7th/6th Gen Intel Core i7/i5/i3 and Celeron processors along with up to 32GB of memory from the two 260-pin SO-DIMM DDR4-2133 slots.

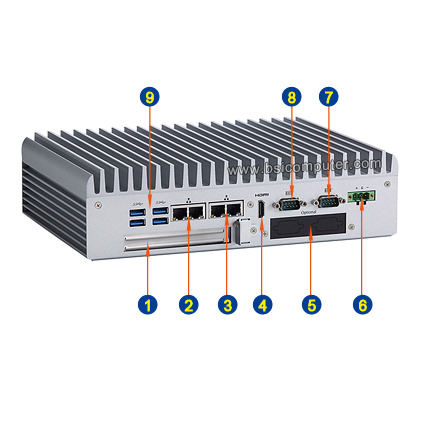

Internal there is a 2.5" SSD/HDD bay and an optional mSATA along with two full-size PCI Express Mini Card slots, a SIM slot and a PCIe x4 slot. An internal USB Type A for license dongle kit usage is also available. The eBox-700-891-FL has two RS-232/422/485, four USB 3.0 and two USB 2.0 ports. There are four 10/100/1000 Mbps, two HDMI and a display port available. Four SMA type connector openings for antennas are standard and the power input is 9 - 36 VDC. The eBox-700-891-FL can me Wall mounted as well as on a DIN-rail.

Barebone & Base Configurations

eBOX700-891-FL Fanless Embedded PC

  • eBOX700-891-FL-DC
  • Intel® Pentium® Processor G4400T (3M Cache, 2.90 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 480GB 2.5" SATA Solid State Drive
  • 2x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b), 1x DisplayPort
  • 2x RS-232/422/485 (DB-9)
  • 4x USB 3.0, 2x USB 2.0 Ports
  • 4x GbE LAN Ports (Intel® 3x i210IT, 1x i219LM)
  • 1x PCIe x4 Slot or 1x PCI Slot (Optional)
  • 2x Full-size PCI Express Mini Card Slots, 1x SIM Slot
  • 1x Internal USB Type A Connector
  • Wireless Module (Optional)
  • 9~36VDC Power Input

Barebone Only:

$835.00

Configured:

$1,049.00

Customize
