eBOX800-511-FL Rugged IP67-rated Fanless Embedded PC with Intel® Core™ i5-7300U & Celeron® 3965U Processor


  • Fanless Design with IP67-Rated for Outdoor Use
  • Intel® Core™ i5-7300U & Celeron® 3965U Onboard Processor
  • 1x 204-pin DDR4 SO-DIMM Slots (Max. 8GB)
  • 1x 2.5" SATA HDD Drive Bay, 1x mSATA
  • Built-in 1x VGA, 1x GbE LAN, 2x USB, 2x COM, 2 x PCIe Mini Slot

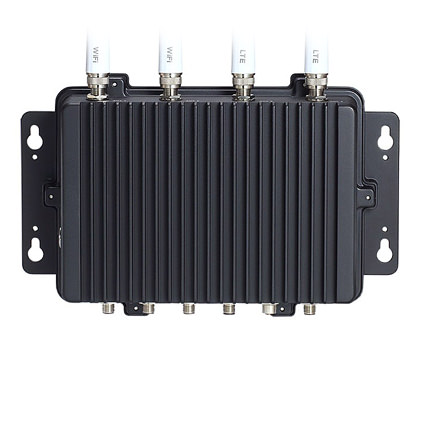

  • 4 x N-jack Antenna Openings with Waterproof Design
  • 9-36 VDC Wide Range Power Input
  • -22° F to +140° F Operating Temperature Range
  • Features M12 Lockable I/Os
  • Rich I/O Options for Customized Designs and Mission-critical Projects
  • Trusted Platform Module 1.2 (TPM) 1.2

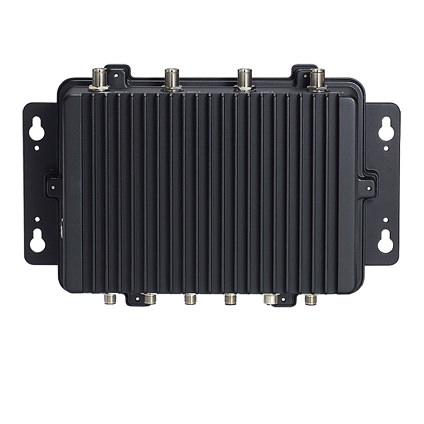

The eBOX800-511-FL is a Fan-less Embedded PC with an IP67 rating and constructed of heavy-duty steel and Aluminum die-casting. It supports an Intel Core i5 7300U /Celeron and a maximum of 16GB DDR4-2133 SO-DIMM memory. As for expansion, the eBOX800-511-FL contains one 2.5" HDD drive bay and one mSATA. A full-size PCI Express Mini Card slot and a Half-size PCI Express Mini Card slot are available.

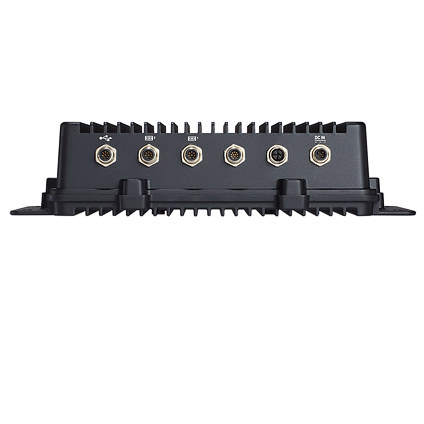

The eBOX800-511-FL has two RS-232/422/485 (M12) ports, two USB 2.0 (M12) and one Ethernet along with a VGA (M12) port for display. There are four N-jack antenna opening with a waterproof design for added protection. The eBOX800-511-FL supports TPM 1.2 and is able to be used via wall mount or VESA mount. The dimensions are 8.27" x 14.44" x 3.27" and the operating temp is -22°F to +140°F. 9 to 36 VDC is used to power the system.

Barebone & Base Configurations

eBOX800-511-FL Fanless Embedded PC

  • eBOX800-511-FL-DC-3965U
  • Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
    Intel® Core™ i5-7300U Processor (3M Cache, 2.60 GHz)
  • 4GB DDR4 SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 2x RS-232/422/485 (M12)
  • 2x USB 2.0 Ports (M12)
  • 1x GbE LAN Port (M12)
  • Buil-in VGA (M12)
  • 2x Full-size PCI Express Mini Card Slots
  • Wireless Module (Optional)
  • 9~36VDC Power Input (M12)

Barebone Only:
