eBOX800-841-FL Rugged IP67 Fanless Embedded PC with Intel® Atom™ E3845 Quad-core Processor


  • Intel® Atom™ E3845 Quad-core Onboard
  • Chipset: SoC Integrated
  • 1x 204-pin DDR3L SO-DIMM Slots (Max. 8GB)
  • 1x 2.5" SATA HDD Drive Bay, 1x mSATA, 1 x CFast™
  • Built-in 1x VGA, 2x GbE LANs, 2x USB, 2x COM, 2 x PCIe Mini Slot, 1 x SIM
  • 4x Antenna Opening with Water Proof Design for WLAN & WWAN Usage
  • -22°F - 140°Wide Operating Temperature Range
  • Fanless Design with IP67-rated
  • 9-36 VDC Wide Range Power Input
  • Flexible I/O for Customized and Mission-critical Projects

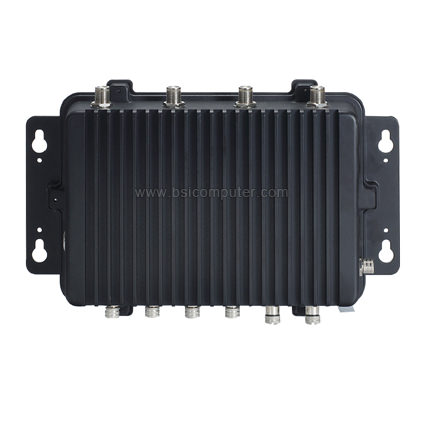

The eBOX800-841-FL is an Embedded System with a fan-less design supporting Intel's Atom processor E3845 1.91 GHz and up to 8GB of memory. It's constructed from aluminum die-casting and heavy-duty steel with an IP67 rating. The dimensions are just 8.27" x 14.44" x 3.27" and the operating temperature is from -22°F ~ +140°F. A single 2.5" SATA HDD offers ample storage needs along with an mSATA and CFast option. As for expansion, there is a Full-size PCI Express Mini Card slot, a Half-size PCI Express Mini Card slot and a SIM slot.

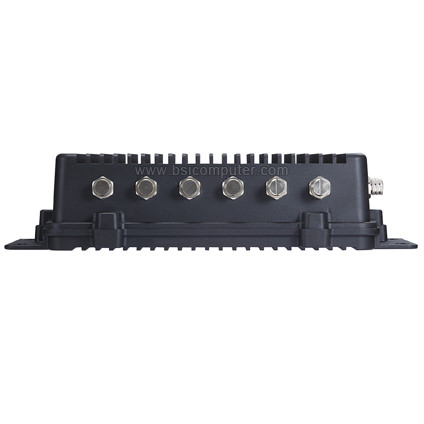

Two M12-type RS-232/422/485 COM Ports and two M12-type USB 2.0 ports are available for peripherals. There are also two M12-type Ethernet Ports and a VGA output. Power input rating is from 9-36VDC.

Barebone & Base Configurations

eBOX800-841-FL Fanless Embedded PC

  • Intel® Atom™ Processor E3845 (2M Cache, 1.91 GHz)
  • 2GB DDR3L SO-DIMM Memory (1x2GB)
  • 250GB 2.5" SATA Solid State Drive
  • 2 x RS-232/422/485 (M12)
  • 2x USB 2.0 Ports (M12)
  • 2x GbE LAN Ports (M12)
  • 1x CFast™, 1x mSATA
  • Buil-in VGA (M12)
  • Buil-in VGA (M12)
  • 2x PCI Express Mini Card Slots, 1 x SIM Slot
  • Wireless Module (Optional)
  • 9~36VDC Power Input

Barebone Only:
