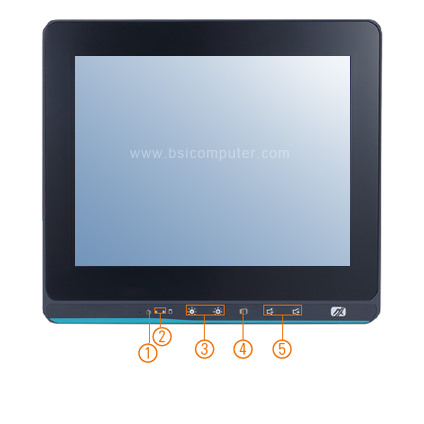

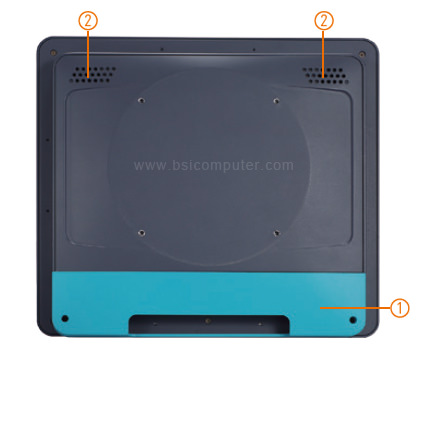

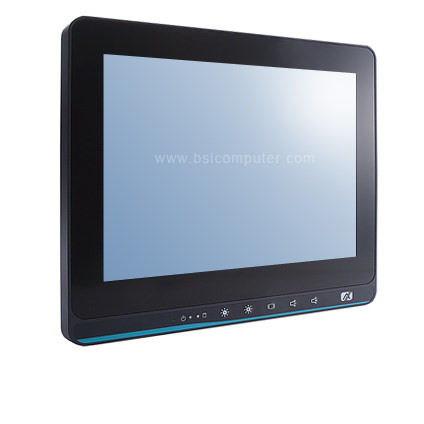

GOT110-316 10.4" Fanless Panel PC

Features:

  • 10.4" XGA TFT LCD Display with LED Backlight
  • Fanless Design with Intel® Celeron® N3350 Processor
  • 1 x 204-pin DDR3L-1768 SO-DIMM, (Max. 8GB)

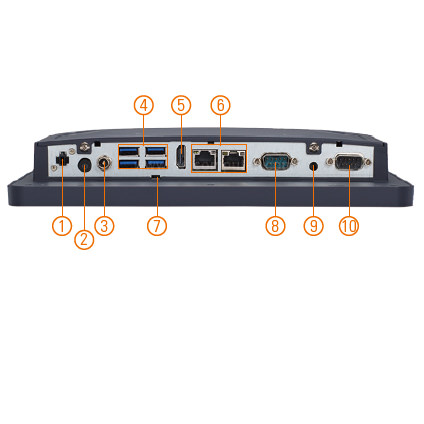

  • 2 x GbE LANs, 4 x USB 3.0 and 2 x COM
  • IP65-rated Front Bezel and IPX1 Rated Back Cover
  • Peripheral Support Including MSR, RFID, Wi-Fi, Barcode Scanner
  • External AT/ATX Mode Selection Switch
  • Easy Maintenance Design for Storage and Memory
  • Supports Panel Mount, Wall Mount, VESA Arm and Desktop Stand
  • Adjustable RS-232/422/485 Setting via BIOS
  • Aluminum Cover for the Better Thermal Dissipation and Reliability

The is a Fan-less Panel PC with a 10.4" projected capacitive 5-wire flat resistive multi-touch XGA TFT LCD which supports an Intel Celeron processor N3350 up to 2.40 GHz and a maximum of 8GB 204-pin SO-DIMM DDR3L-1600. The front bezel is IP65, NEMA 4 rated for rugged protection from the elements. As for expansion, there is a full-size PCI Express Mini Card slot with mSATA and a full-size PCI Express Mini Card slot with SIM. Apart from the mSATA, the GOT110-316 can also be equipped with a 2.5" SATA HDD. The I/Os consist of two RS-232 (one of them can be configured for RS422/485), four USB 3.0, two LAN and an HDMI port.

The GOT110-316 measures 10.21" x 1.71" x 9.16" and can operate in temperatures ranging from +32°F ~ +122°F. There is a DC version which operates on 12V/19V~ 24V DC adapter cable or an AC version that uses a 100 ~ 240 V AC-DC, 60W power adapter. The power consumption of the GOT110-316 is about 24W. Three mounting options are available; Panel mount, Desktop stand and Wall mount.

Barebone & Base Configurations

GOT110-316 Fanless Panel PC

  • 10.4" 1024 x 768 350 nits XGA TFT LCD with LED Backlight Touchscreen
  • Intel® Celeron® N3350 Processor (2M Cache, up to 2.4 GHz)
  • 2GB DDR3L SO-DIMM Memory
  • 250GB 2.5" SATA Solid State Drive
  • 1 x RS-232(DB9), 1 x RS-232/422/485 (DB9)
  • 2 x Gigabit LAN Ports
  • 2 x USB3.0
  • 2x PCIe Mini Card Slots
  • Wireless Module (Optional)
  • DC Version: 12/19~24 VDC Screw Type Power Input with DC Cable
    AC Version: 60W 100~240V AC/DC Screw Type Power Adapter (Optional)

Barebone Only:

$815.00

Configured:

$895.00

Customize
