GOT110A-TWL-WCD 10.1" Fanless Touch Panel PC

Features:

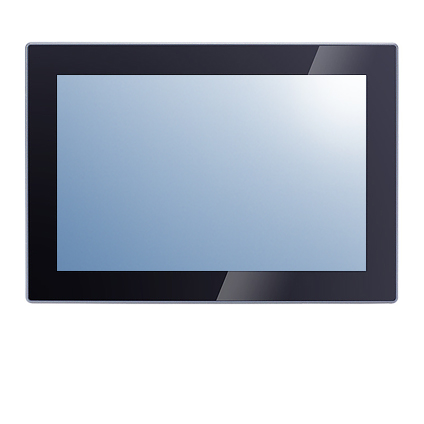

  • 10.1" WXGA TFT LCD, 350 nits with LED backlight, PCAP
  • Fanless design with Intel N-series N150 Processor (Twin Lake)
  • Onboard 8GB LPDDR5 Memory
  • 1 x M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), 1 x mSATA

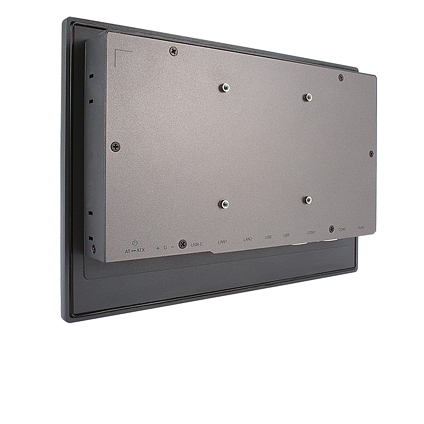

  • 2 x LAN, 4 x USB, 1 x USB Type C, 2 x COM, and 1 x Line-out
  • AT/ATX mode selectable via hardware switch
  • Supports Wi-Fi (6E/7) or 4G LTE
  • Supports Flexible I/O Window
  • Operating temperature: 14°F to +122°F
  • Front bezel IP65 & rear cover IP30

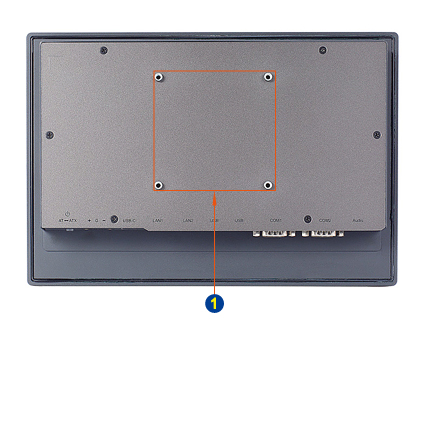

  • Supports panel mount, wall mount, VESA, and desktop stand

The GOT110A fanless touch panel PC features a 10.1-inch WXGA TFT LCD with 350-nit LED backlighting and projected capacitive (PCAP) touch technology, powered by an Intel N-series N150 (Twin Lake) processor with onboard 8GB LPDDR5 memory. Its fanless design ensures quiet, reliable operation, while versatile connectivity includes 2 LAN ports, 4 USB ports, 1 USB Type-C port, 2 COM ports, and 1 line-out. With an IP65-rated front bezel, IP30-rated rear cover, hardware-selectable AT/ATX power mode, and support for M.2 NVMe, mSATA, Wi-Fi 6E/7, or 4G LTE, the GOT110A offers flexible storage and connectivity options. Operating from -10°C to +50°C, it supports panel, wall, and VESA mounting, as well as desktop stand installation, making it suitable for a wide range of industrial and embedded applications.

Barebone & Base Configurations

GOT110A-TWL-WCD 10.1" Fanless Touch Panel PC

  • 10.1" 1280x800 350 nits TFT LCD with LED backlight
    Projected Capacitive Multi-touch Screen
  • Intel N150 4 Cores Processor (up to 3.6 GHz)
  • Onboard 8GB LPDDR5 Memory
  • 500GB M.2 NVME Solid State Drive
  • 1 x RS-232, 1 x RS-232/422/485
  • 2 x USB 3.2 GEN 2, 2 x USB 2.0, 1 x USB Type-C
  • TPM 2.0
  • 1 x M.2 E Key 2230 for wireless (PCIe & USB 2.0)
  • 1 x Full-size PCIe Mini card slot (USB + PCIe/SATA)
  • 1 x Nano SIM card slot
  • 2 x 2.5GbE LAN (I226-V, supports UEFI PXE boot and LAN wake-up, w/o TSN)
  • 9 ~36VDC Terminal Block Power Connector

Barebone Only:

$1,245.00

Configured:

$1,425.00

Customize
