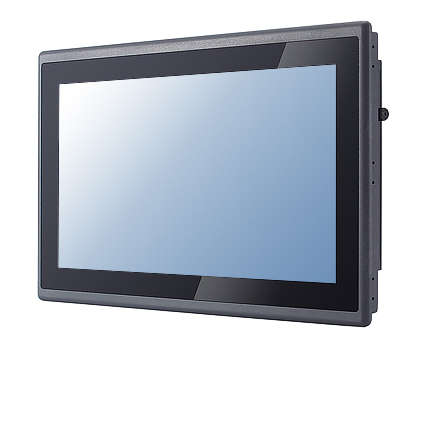

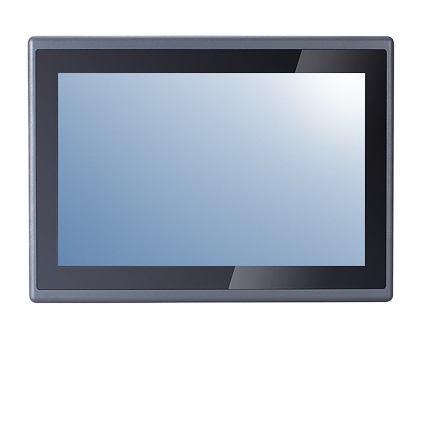

GOT112A-TWL-WCD 12.1" Fanless Touch Panel PC
Features:
- 12.1" WXGA TFT LCD, 400 nits with LED backlight, PCAP
- Fanless design with Intel N-series N150 Processor (Twin Lake)
- Onboard 8GB LPDDR5 Memory
- 1 x Removable 2.5" SATA SSD
- 1 x M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), 1 x mSATA

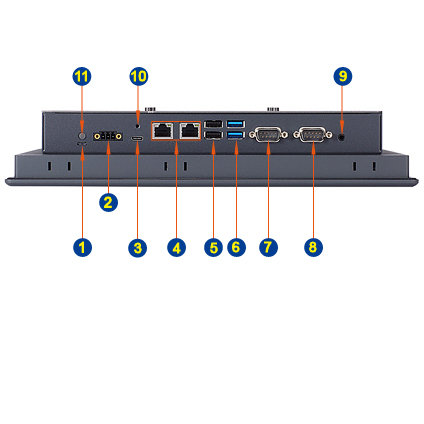

- 2 x LAN, 4 x USB, 1 x USB Type C, 2 x COM, and 1 x Line-out
- AT/ATX mode selectable via hardware switch
- Supports Wi-Fi (6E/7) or 4G LTE
- Supports Flexible I/O Window
- Operating temperature: 14°F to +122°F
- Front bezel IP65 & rear cover IP30

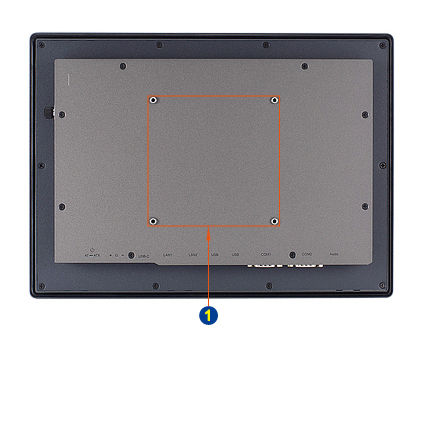

- Supports panel mount, wall mount, VESA, and desktop stand
Barebone & Base Configurations
GOT112A-TWL-WCD 12.1" Fanless Touch Panel PC
- 12.1" 1280x800 400 nits TFT LCD with LED backlight
Projected Capacitive Multi-touch Screen - Intel N150 4 Cores Processor (up to 3.6 GHz)
- Onboard 8GB LPDDR5 Memory
- 500GB M.2 NVME Solid State Drive
- 1 x RS-232, 1 x RS-232/422/485
- 2 x USB 3.2 GEN 2, 2 x USB 2.0
- TPM 2.0
- 1 x M.2 E Key 2230 for wireless (PCIe & USB 2.0)
- 1 x Full-size PCIe Mini card slot (USB + PCIe/SATA)
- 1 x Nano SIM card slot
- 2 x 2.5GbE LAN (I226-V, supports UEFI PXE boot and LAN wake-up, w/o TSN)
- 9 ~36VDC Terminal Block Power Connector
Configured: |
$1,549.00 |
